TLAR Current Clamp- Seeker+

TLAR Current Clamp- Seeker+

$3,105.00

Please call +1 (800)296-4120 for International Pricing

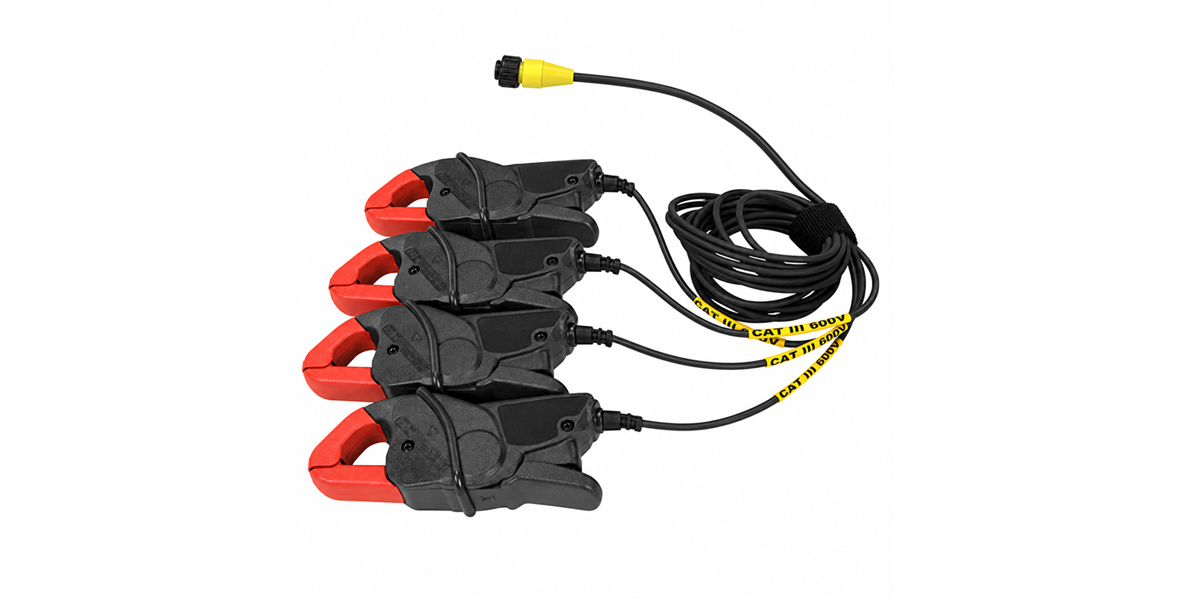

The Seeker+ TLAR Current Clamp is a precision 4-clamp current measurement accessory designed specifically for integration with Seeker+ recorder. Built to support accurate data collection in utility and distribution environments, this iron-core, clamp-style current transformer enables safe, non-intrusive current measurement.  With selectable 20A and 200A ranges, the 20A range is designed for 5A metering CT secondaries, while the 200A range is well suited for residential or individual circuits. Its design allows for quick deployment in the field without requiring system interruption, making it well suited for temporary studies or permanent monitoring applications.

Adapted from PMI’s established TLAR current clamp platform, this version is configured for compatibility with the Seeker+ system and supports a wider range of termination options to accommodate different installation requirements. The clamp design allows it to be installed directly around conductors, providing a practical solution for capturing current data in real-world conditions.

When used with Seeker+ recorder devices, the Bolt TLAR Current Clamp enhances visibility into system performance by enabling accurate current measurement alongside voltage data. This combination supports improved analysis of load behavior, system conditions, and overall distribution performance.


Have a PQ Question? Ask Merlin™ — Free

Send it to askmerlin@powermonitors.com or text (540) 383-3144

Specs

Electrical Specifications
Current Ranges 20A (5A metering CT secondaries), 200A (residential/individual circuits) AC
Operating Limit 200A Continuous
Frequency Range 40 to 10kHz
Working Voltage 600 VAC max
Influence of conductor position in jaw 0.5% of reading at 50/60Hz
Influence of adjacent conductor 1.50%
Influence of frequency 40Hz to 1kHz: 3% of reading, 1kHz to 10kHz: 12% of reading
Phase Shift
1-20A ≤3 degrees
20-80A ≤2 degrees
80-200A ≤2.5 degrees
Accuracy
20A scale 1 to 20 A: 1.5% of reading ±0.1A
200A scale 1.5% of reading ±0.5A
Safety
Rating UL 61010B-1, IEC 61010-1, 600V CAT III
PMI Recorder Capability
Compatibility Adjustable 20A/200A range
Environmental
Operating Temp 14°F to 131°F, -10°C to 55°C
Case Protection Probes – IP40, Enclosure – IP65
Physical Dimensions
Maximum Conductor Size 0.78 in (20 mm), bus bar 20 x 5 mm
Probes 5.47 x 2.00 x 1.18 in (139 x 51 x 30 mm)
Enclosure 2.36 x 1.38 x 0.67 in
Weight TLAR+200/3 – 0.75 lb, TLAR+200/4 – 1.00 lb
Probe Leads 4 ft, 600V rating
# of Elements 4
Output Cable 9 in, 600V rating

White Papers

Measuring Current: Best Practices

Optimizing Current Resolution Using TLARs or Flex CTs

Using PMI’s TLAR and TLAR-S Clamp-Style Current Transformers

Click Here for Product-Related White Papers

FAQ

What current ranges does the Seeker+ TLAR Current Clamp support? +

The clamp offers adjustable 20A and 200A ranges — the 20A range is designed for 5A metering CT secondaries, while the 200A range is well suited for residential or individual circuits.

Can I use the Seeker+ TLAR Current Clamp with other PMI recorders? +

This version is configured specifically for compatibility with the Seeker+ system. For use with other PMI recorders, see the standard TLAR Current Clamp.

What voltage rating is the Seeker+ TLAR Current Clamp safe for? +

The clamp is rated for 600 VAC, CAT III environments, allowing safe use in industrial and utility settings.

What’s the maximum conductor size the clamp can accommodate? +

The clamp accommodates conductors up to 0.78 in (20 mm) in diameter, or bus bars up to 20 x 5 mm.

How do I ask a power quality question about my data? +

Email Merlin™ at askmerlin@powermonitors.com or text (540) 383-3144. Merlin™ is PMI’s AI assistant, trained on 425+ technical white papers.
