Specs
| Product Overview | |

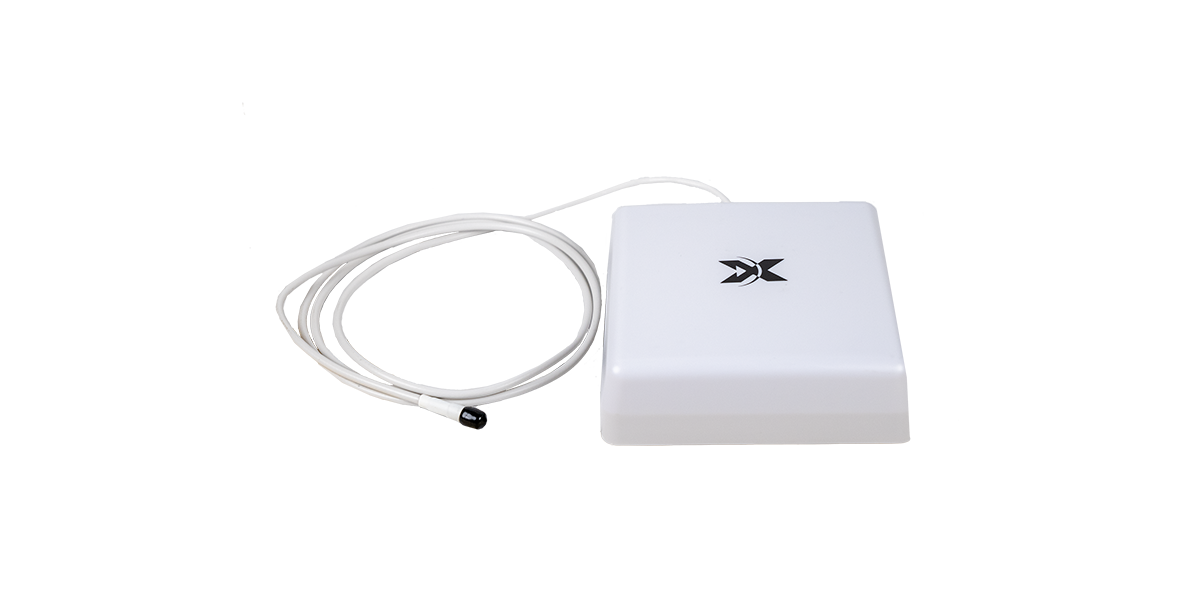

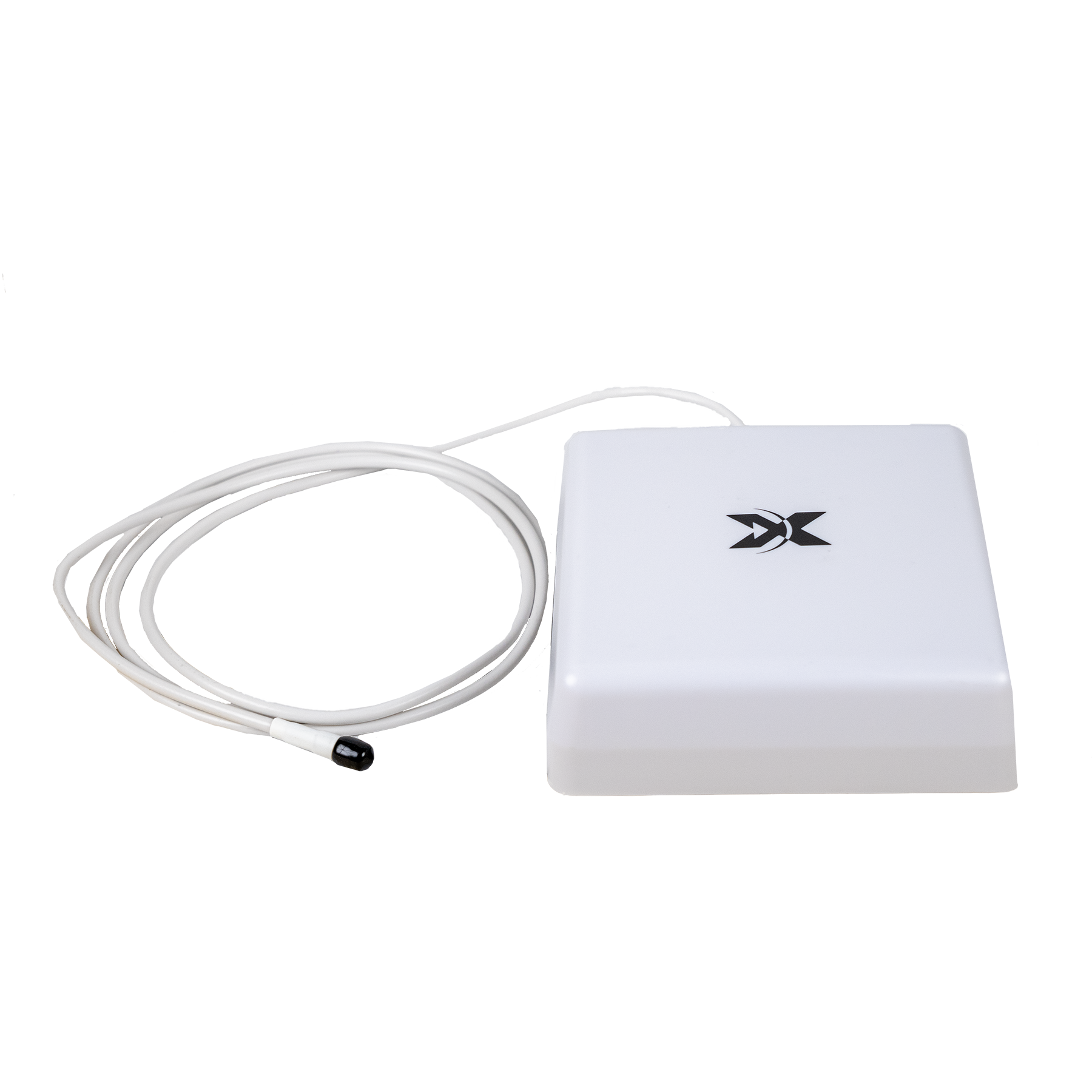

| Product Type | Indoor / outdoor cellular wideband directional antenna |
| Frequency Range | 698–960 MHz and 1710-2700 MHz |
| Electrical Specifications | |
| Gain | 6.5dBi low bands; 9dBi high bands |
| VSWR | 1.8 low/ 1.5 high |
| Polarization | Vertical |
| Front-to-Back Ratio | 15dB minimum |
| Horizontal Beamwidth | 65° |
| Vertical Beamwidth | 55° |
| Impedance | 50 Ω nominal |
| Input Power | 50 W maximum |
| Connector | SMA Male |

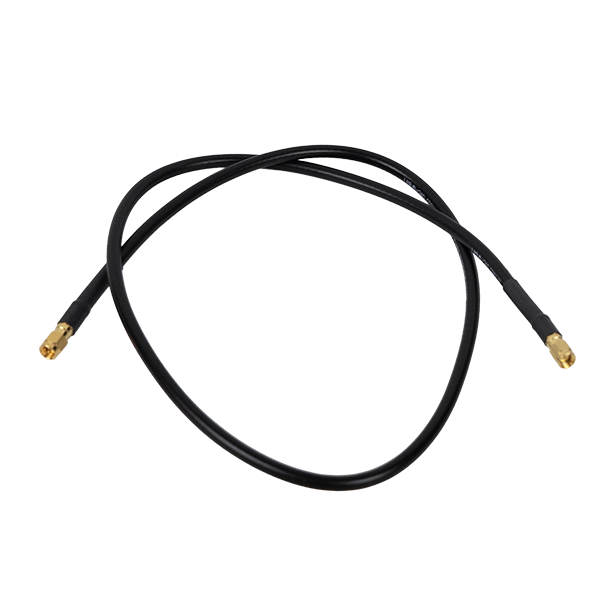

| Cable Type | 2m coax |
| Mechanical Specifications | |
| Dimensions | 165 × 155 × 50 mm |
| Packaging Size | 200 × 170 × 170 mm |
| Weight | 0.5 kg |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Operating Temperature | -40°F to 149°F, -40°C to 65°C |
| Mounting & Application | |
| Mounting Hardware | Standard L-bracket included |
| Application | Directional cellular signal support for indoor or outdoor installations |
