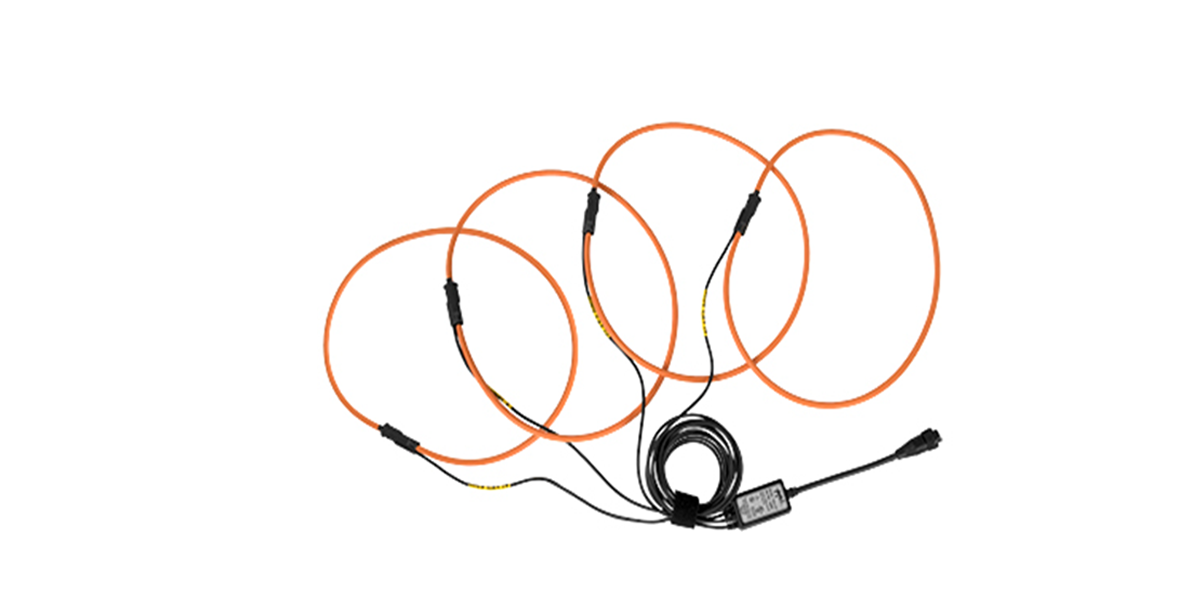

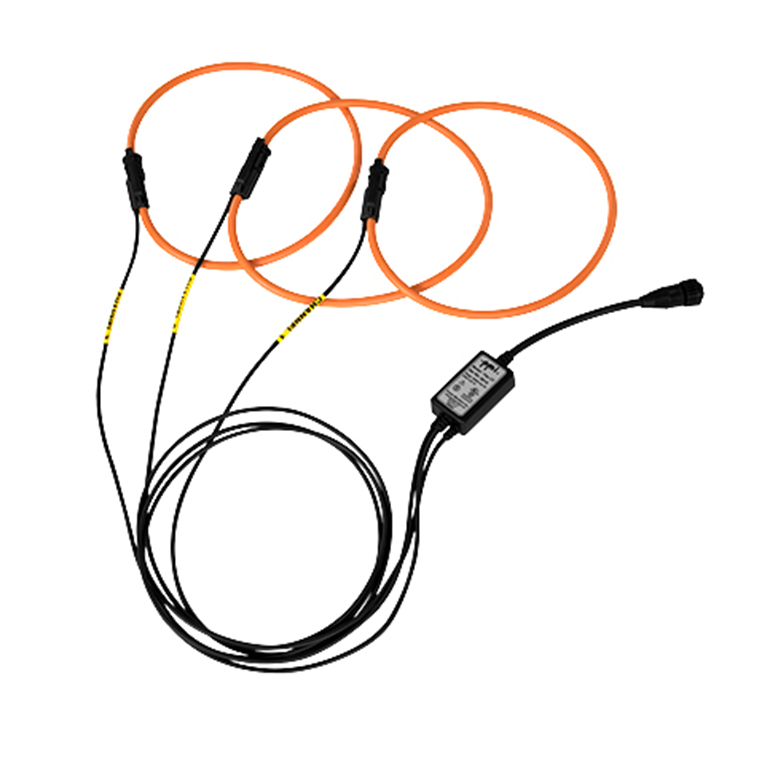

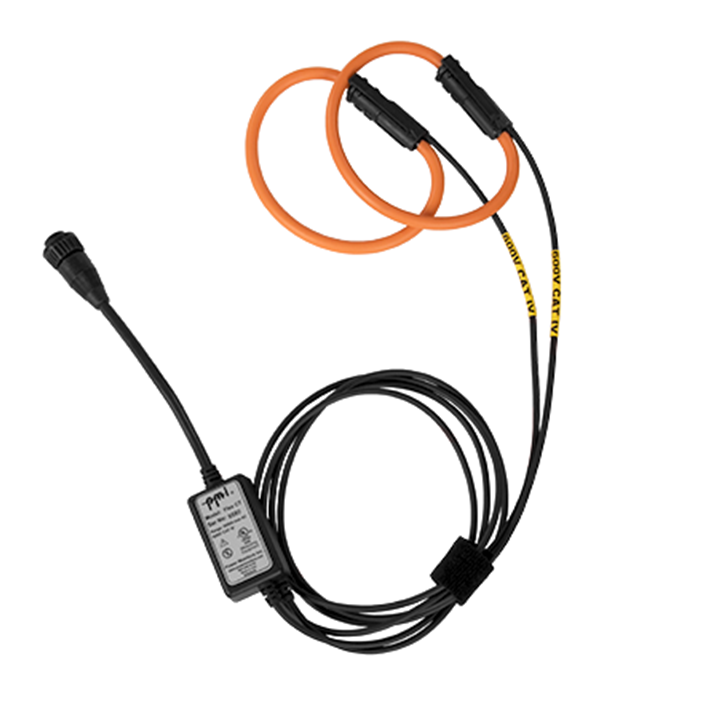

Enjoy the convenience of flexible current probes (Flex CTs). These 5,000A probes come in 12″, 24″, 36″, and 48″ lengths that allow you to easily surround multiple conductor bundles. They are available in sets of two, three, or four for use with different recorders. The Flex CTs are powered from recorder voltage and DO NOT require a battery pack for operation.
Have a PQ Question? Ask Merlin™ — Free
Send it to askmerlin@powermonitors.com or text (540) 383-3144
These flexible CTs are available for the Revolution, Eagle Series, ViP+, iVS-3 rev2, and iVS-3/600P models. PMI® also allows the user to determine the current scale for these probes. The recorder can be set to record 100A, 1,000A and 5,000A scales – all from one inexpensive CT set!
Switchable Ranges: 1 to 100A, 1 to 1000A, 1 to 5000A
Operating Limit: 1 to 5000A
Controls: Range is chosen from the recorder, PC, or PDA software.
Power Source: Power is supplied by connection to PMI recorder. No external battery or other power source is required.
Linearity: ±0.05%
Phase Shift: ≤±0.5% at 50 to 60 Hz
Frequency Range: 8Hz to 10kHz
Crest Factor (mid range): 100A and 1000A scale: 3.0 5000A scale: 1.6
Position Sensitivity: ±1.5% 1 in from connector
Sensor: 600V AC to earth
Module: 600V AC to earth
± 1% of full scale
Double Insulated
Sensor: 600V CAT IV
Module: 600V CAT III
Pollution Degree 2
iVS-3/600E may require a firmware upgrade
Sensor Jacket: Polyurethane UL94V0
Connector: FR Polypropylene UL94V0
Cable Jacket: Polyurethane UL94V0
Min. Bending Radius: 1 in (25.4 mm)
Sensor Diameter: .310 in (7.9 mm)
Connector Diameter: 1.07 in max (27.2 mm)
Sensor Output Cable Length: 48 in (1.2 m)
Operating Temperature: -20 to 135°F (-29 to 57°C)
Altitude Operating: 0 to 2000m, derated above 2000m
Case Protection: Sensor and Module IP65 per IEC 529
| PMI CT MODEL NUMBER | …/12 | …/24 | …/36 | …/48 |
| LENGTH (OPEN) | 12 in. 305 mm |
24 in. 610 mm |
36 in. 915 mm |
48 in. 1220 mm |
| O.D. (CLOSED) | 4.15 in. 105 mm |
8.3 in. 210 mm |
12 in. 305 mm |
15.9 in. 404 mm |
| I.D. (CLOSED) | 3.5 in. 89 mm |
7 in. 178 mm |
10.9 in. 277 mm |
14.7 in. 372 mm |
