Abstract
Three-phase power systems depend not only on equal voltages between phases but also on the order in which those phases reach their peaks — a property called phase rotation. Incorrect rotation, whether caused by miswired field conductors or by a misconfigured recorder, can damage the equipment that motors drive, cause connected applications to run in reverse, and create fault-level current when sources with mismatched rotation are paralleled. This paper introduces phase rotation as a property distinct from voltage unbalance and shows how to detect rotation problems in PMI’s PQ Canvass software using the phasor diagram and the Symmetrical Components panel of the waveform Meter view. A channel-swap tool in the waveform view supports retrospective analysis when a recording was captured under a wrong-rotation install.
What is Phase Rotation?
In a three-phase electrical system, three sinusoidal voltages — Va, Vb, and Vc — are offset in time by 120 degrees, each reaching its peak one-third of a cycle apart from the others. The order in which those three voltages reach their peaks is the system’s phase rotation.

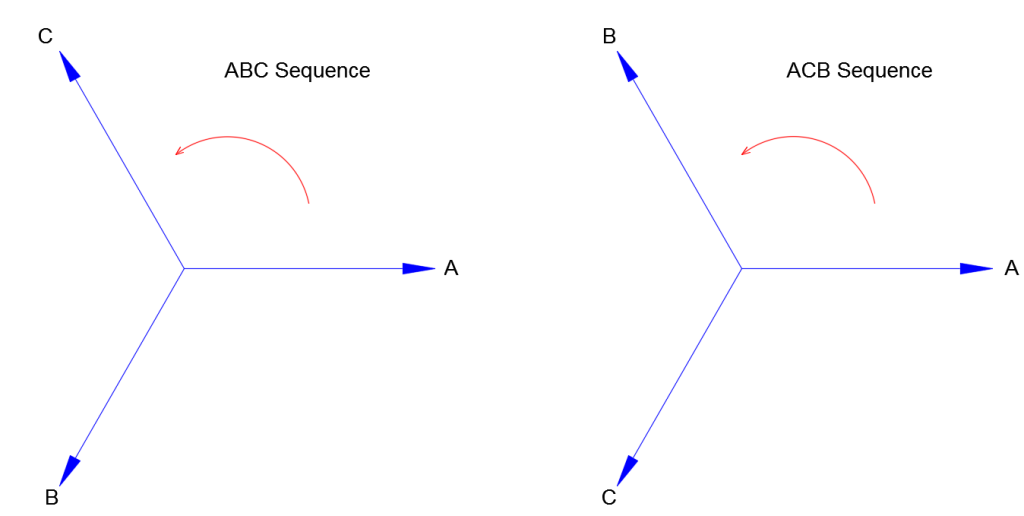

The standard order is positive rotation, also called ABC or forward rotation: Vb lags Va by 120 degrees, and Vc lags Vb by another 120 degrees. The reverse order is negative rotation, also called ACB or reverse rotation: Vc lags Va by 120 degrees, and Vb lags Vc by another 120 degrees. Figure 1 shows the two rotations side by side as phasor diagrams.
The rotating-phasor language is more than visual. Three-phase voltage applied to motor or generator windings produces a rotating magnetic field whose direction of rotation matches the supply’s phase rotation. This is the field that drives every three-phase induction motor in the field, and the consequences of getting it backwards are the subject of the next section.
Note that phase rotation is distinct from voltage unbalance. A perfectly balanced three-phase source — three phases of equal magnitude, exactly 120 degrees apart — can still have the wrong- rotation. Likewise, a heavily unbalanced source can have correct rotation. The two phenomena have different causes, different signatures in the data, and different remedies. This paper is about the former; the latter is covered in detail in Voltage Unbalance Within PQ Canvass Compliance Reports.
Why Incorrect Rotation Causes Equipment Issues
A familiar consequence of incorrect phase rotation is a three-phase induction motor that runs backwards. Because the direction the motor spins is determined by the rotation of the supply’s magnetic field — and that direction matches the supply’s phase rotation — connecting the three phases in the wrong order produces a motor that turns the wrong way. The motor is not necessarily electrically damaged by the reversed sequence alone, but the application may be damaged quickly: pumps push fluid the wrong way, conveyors run in reverse, compressors can be damaged by backward rotation of their internals, exhaust fans pull air the wrong way through ducts, and depending on the driven load the motor itself may become overloaded or stalled. The classic field call is for an installer to discover this at startup, swap any two of the three supply leads, and walk away. The harder version is when rotation reverses unnoticed during a restoration event — phases transposed at the substation, the transformer, or the meter base. Single-phase loads at the service continue to work normally, so the reversal is not detected until a three-phase motor or rotating load is next started, sometimes hours or days later.
Variable frequency drives require separate treatment. For many common AC drives, line-side phase rotation does not determine motor rotation: the drive rectifies the incoming AC to a DC bus and synthesizes its own output waveform, so motor direction is controlled by the drive’s output phase sequence, drive parameters, or by swapping two motor leads at the drive output. Some drives still monitor incoming phase sequence as a protection or configuration check, so the drive’s manual should govern the field diagnosis.
Paralleled transformer banks are unforgiving. Closing a parallel switch onto two banks with mismatched phase rotation creates very large circulating currents — sometimes high enough to damage the banks themselves before protection clears the fault. These misalignments tend to arise during restoration work, where conductors must be re-identified and reconnected under time pressure, and field labels are not always definitive.
Generators and automatic transfer switches require matched phase rotation. In an open-transition transfer the load is moved from one source to the other without the two ever being connected, so reversed generator rotation does not directly fault the transfer; instead, downstream three-phase motors and rotating loads run backwards after the transfer completes. In closed-transition transfer, in-phase transfer, or any arrangement where sources may briefly be paralleled, mismatched rotation is more severe: corresponding poles are no longer the same phase, and closing the tie can impose line-to-line voltage across the switching path and create fault-level current.
In all of these cases, the underlying physics is the same. Positive-sequence voltage — the balanced ABC component — creates a magnetic field that rotates in the intended direction, doing the useful work of driving motors and generators. In a normally operating machine, any negative-sequence content represents a counter-rotating component relative to the intended field, producing heating and torque pulsation rather than useful torque in the intended direction. (For a full treatment of positive, negative, and zero sequence, see the white paper on Symmetrical Components.) A wrong-rotation installation is, in mathematical terms, a system in which essentially all of the voltage manifests as negative sequence and the positive-sequence content is near zero — exactly the opposite of healthy operation.
The Diagnostic Signature
For a system operating with correct rotation and reasonable balance, positive-sequence voltage is essentially equal to RMS voltage, and negative-sequence voltage is small — typically well under one percent of positive. Voltage unbalance from load asymmetry, taps, or open deltas can push negative sequence up to a few percent of positive. ANSI C84.1 recommends limiting polyphase voltage unbalance to 3% at the electric-utility revenue meter under no-load conditions, using the maximum-deviation-from-average-voltage method; PQ analyzers also commonly report symmetrical-component unbalance, expressed as negative-sequence voltage relative to positive-sequence voltage, and the two metrics are related but not identical. A full discussion of voltage unbalance and its compliance limits is given in the white paper Voltage Unbalance Within PQ Canvass Compliance Reports.
Wrong-rotation drives the dominant sequence component from positive to negative. In the pure case — a perfectly balanced ACB system at the same voltage magnitude as a healthy ABC system — positive-sequence voltage falls toward zero while negative-sequence voltage rises toward the phase RMS magnitude. PQ Canvass reports unbalance as the ratio of negative-sequence to positive-sequence voltage; as positive sequence approaches zero, that ratio grows very large. Ordinary unbalance produces a single-digit-percent ratio; wrong-rotation pushes the ratio arbitrarily high. The two cases are easy to tell apart in the data.
PQ Canvass exposes both views needed to identify this signature: the Vector Diagram for visual confirmation of the angular order, and the Symmetrical Components panel of the waveform Meter view for the quantitative magnitudes.
Detecting Rotation Issues in PQ Canvass
PQ Canvass computes and displays symmetrical components directly when the recording includes captured waveforms. The simplest way to ensure this is to enable periodic waveform capture when initializing the recording — simply check the “Periodic Capture” checkbox in the recorder configuration. (Symmetrical components can also be derived externally from stripchart data when the recording includes 1st-harmonic magnitude and phase traces for all three voltage channels; 60Hz Phasors and Extended PQ Measurements walks through the calculation and provides a worked spreadsheet.) Symmetrical Components covers the in-PQ-Canvass prerequisite in more detail.
The recording used here is from a Bolt recorder capturing a steady-state three-phase 120 V wye service. The voltages sit close to nominal with negligible distortion and the load is essentially zero, providing a clean baseline; we will use it as both our correct-rotation reference and as the basis for a deliberate channel swap that demonstrates what wrong-rotation would look like in the same data.

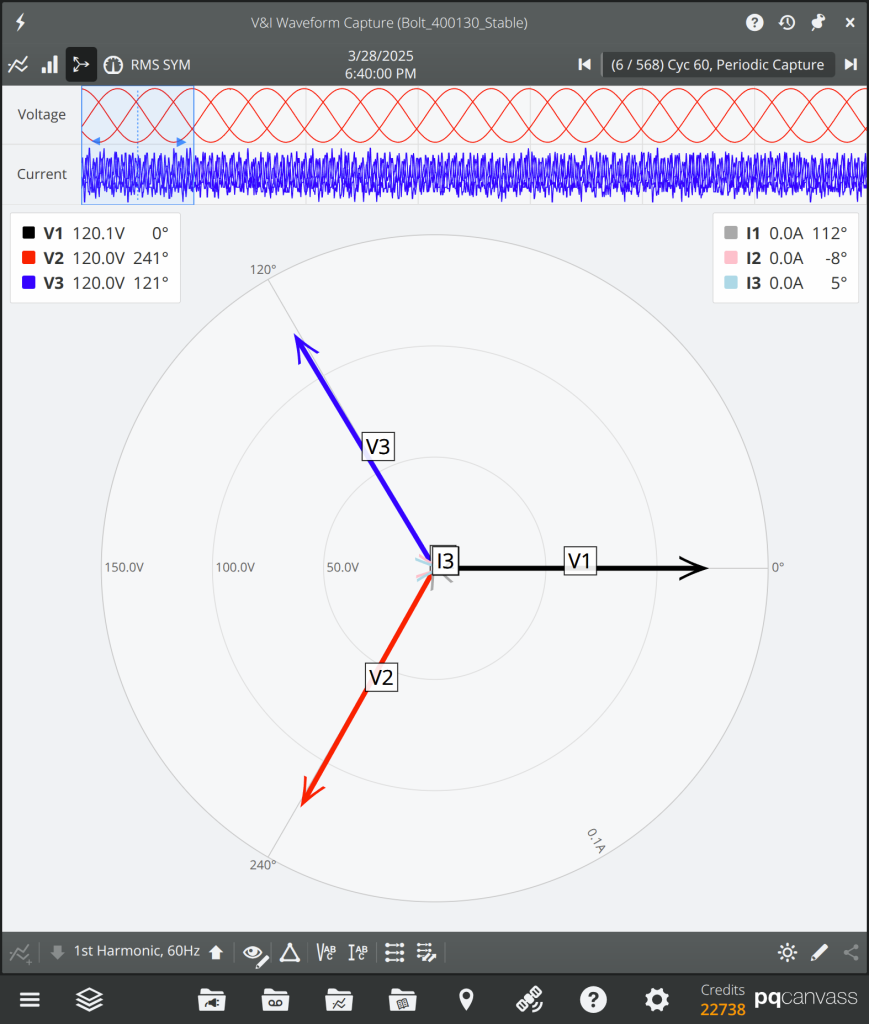

We open the recording, navigate to a periodic waveform capture, and switch to the Vector Diagram view by clicking the Vector Diagram button in the toolbar. The result is shown in Figure 2.
The three voltage phasors V1, V2, V3 sit 120 degrees apart, with V1 at 0 degrees, V2 trailing at 240 degrees (equivalently −120 degrees), and V3 at 120 degrees (equivalently −240 degrees). The angular order proceeding clockwise — V1, V2, V3 — is the standard ABC sequence.

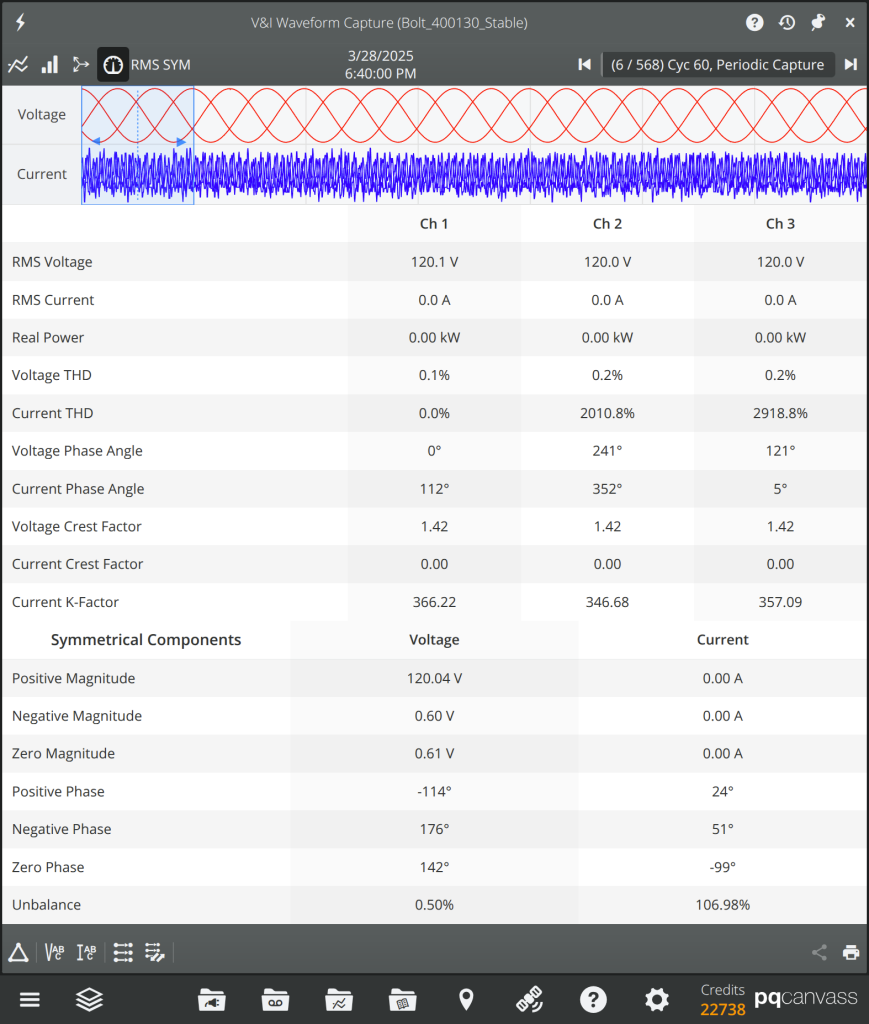

Switching to the waveform Meter view, the Symmetrical Components panel at the bottom of the table (Figure 3) reports the same picture in numbers: positive-sequence voltage of 120.04 V (matching the channels’ 120 V RMS), negative-sequence voltage of 0.60 V, zero-sequence voltage of 0.61 V, and a displayed unbalance of 0.50%. This is what a healthy ABC system looks like in PQ Canvass.
To see what an installation with reversed phase rotation would look like in this same data, we use PQ Canvass’s voltage channel-swap tool. The waveform toolbar includes a button titled “Swap voltage channels 2 and 3 with one another” (shown highlighted in Figure 4) — simply click it. The button’s icon toggles to indicate the swap is active, and the V2 and V3 voltage channels are logically swapped in the displayed data. The change is transient view-state and is not written back to the recording.

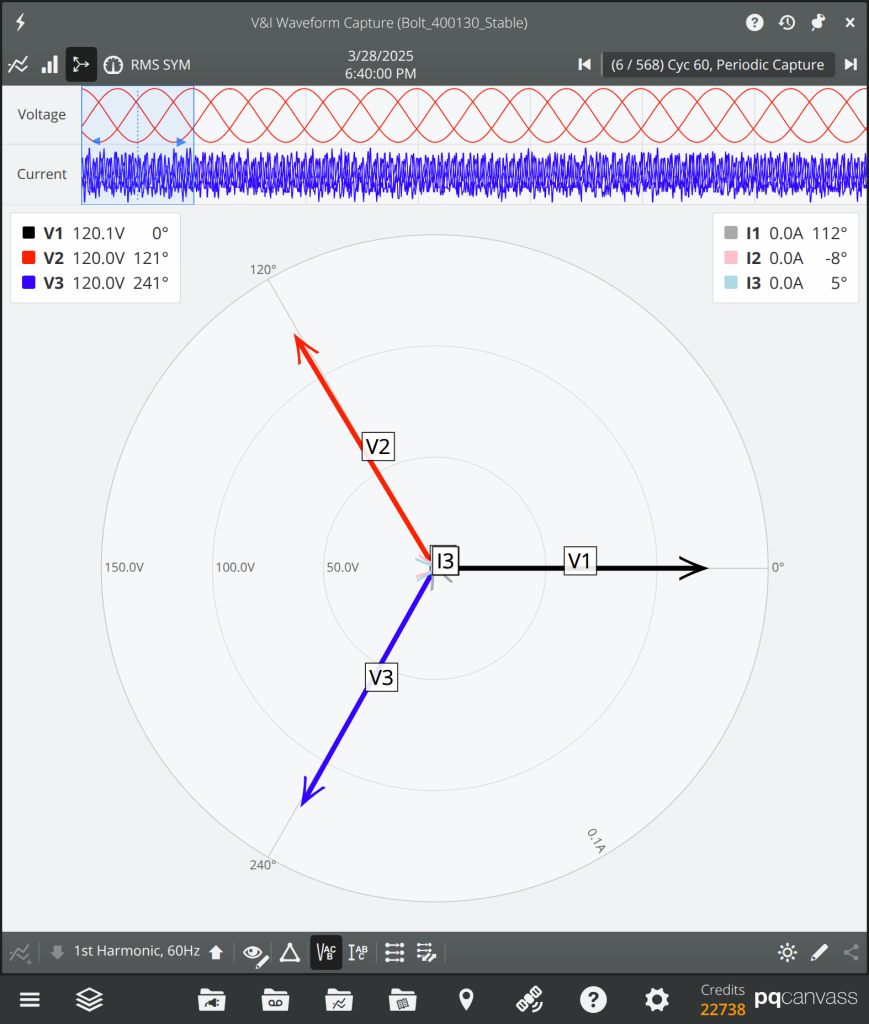

The phasor view immediately updates (Figure 5). V1 still sits at 0 degrees, but V2 and V3 have exchanged angular positions. The angular order proceeding clockwise — V1, V3, V2 — is now the reverse, ACB sequence.

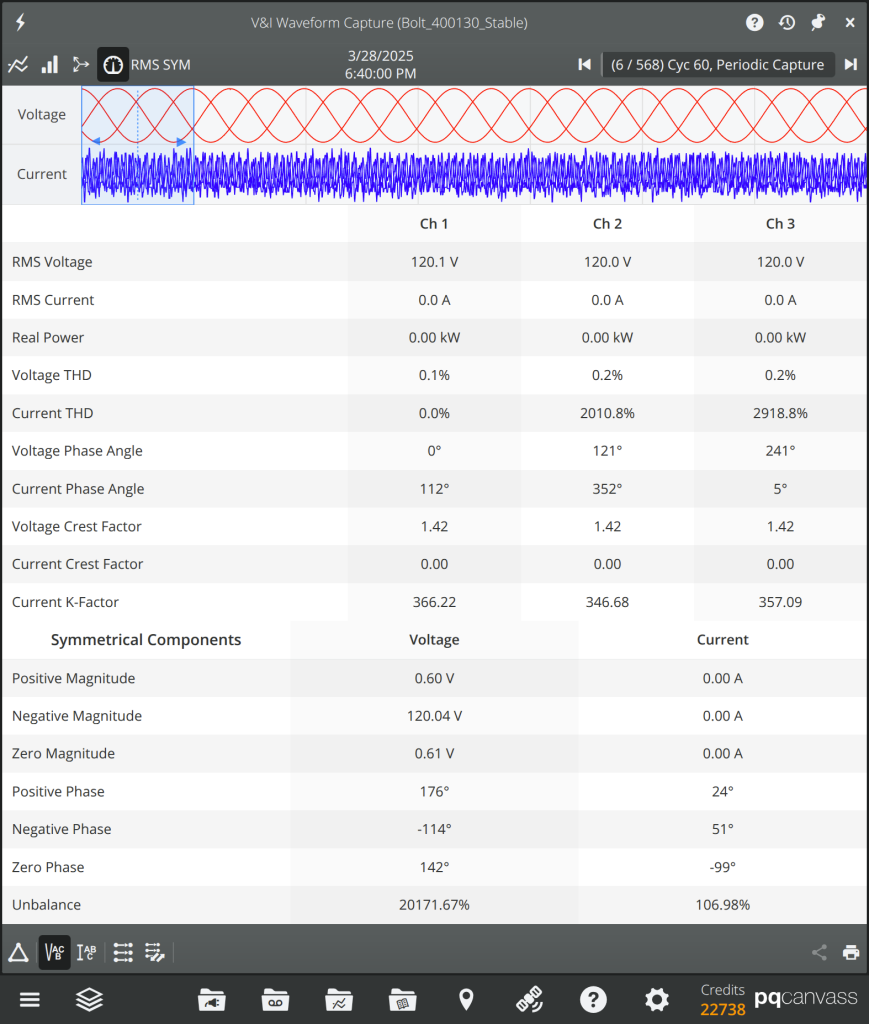

Returning to the Meter view (Figure 6, next page), the Symmetrical Components panel reflects the change. Positive-sequence magnitude has collapsed from 120.04 V to 0.60 V; negative-sequence magnitude has gone the opposite way, from 0.60 V to 120.04 V — the two have effectively traded places. The displayed unbalance ratio jumps from 0.50% in the correct case to 20,171.67% after the swap, orders of magnitude beyond any value real-world load imbalance can produce. This is the data signature an engineer would observe in PQ Canvass if a real field installation had its phases reversed.
The two-figure comparison (Figure 2 against Figure 5, Figure 3 against Figure 6) is the practical detection workflow. In an actual investigation, an engineer who suspects mis-wiring on a service can perform the same check on the suspect recording in two clicks: open the Vector Diagram and check the angular order; open the Meter view and read the Vpos and Vneg magnitudes. A healthy system has tight ABC angles and unbalance under a percent or two. A wrong-rotation system has the angular order reversed and the symmetrical-component magnitudes effectively inverted — positive-sequence voltage near zero, negative-sequence voltage near the phase RMS. In a clean recording with known channel mapping the two cases are easy to tell apart; as always, confirm the recorder’s channel mapping before treating an unusual symmetrical-component reading as a field wiring condition.
Correcting Rotation Issues
When an engineer encounters a recording captured under a wrong-rotation install, the channel-swap buttons used earlier to simulate the problem also serve as the analytical fix: applying the swap lets the engineer view the data as it would have appeared with correct wiring. The swap is transient view-state; it does not modify the recording, and it does not fix the wiring.
Note that the channel-swap tool is an analytical aid. The physical installation still requires correction in the field before equipment is energized, and the act of swapping channels in PQ Canvass does not constitute that correction. PQ Canvass diagnoses the problem and supports analysis of recordings captured under non-ideal conditions; it does not relieve the engineer of fixing the install.
Conclusion
Phase rotation is a foundational property of three-phase electrical systems, distinct from voltage unbalance, with a clear quantitative signature in the symmetrical components of the voltage waveform. PQ Canvass exposes that signature directly through the Vector Diagram and the Symmetrical Components panel of the waveform Meter view, allowing an engineer to diagnose a rotation problem in two clicks. The waveform channel-swap buttons support retrospective analysis of recordings captured under a wrong-rotation install. For a deeper treatment of symmetrical components themselves and the closely related topic of voltage unbalance, see Symmetrical Components and Voltage Unbalance Within PQ Canvass Compliance Reports.
