Introduction
Modern industrial and utility electrical systems increasingly rely on equipment that responds not only to voltage magnitude, but also waveform timing and phase stability. Equipment trips, transfer events, or process interruptions occur even though records show voltage remaining within acceptable RMS limits. These events are often categorized as nuisance operations or unexplained disturbances.
One potentially overlooked contributor is the voltage phase angle jump (PAJ): an abrupt shift in the phase angle of the voltage waveform that commonly accompanies faults, switching operations, or system reconfiguration events. Compared to voltage sags and transients, phase angle displacement is often under-observed because many installed monitoring systems prioritize RMS magnitude and duration rather than instantaneous waveform timing.
Phase angle jumps can produce operational consequences disproportionate to their apparent severity. Variable frequency drives (VFDs), static transfer switches (STS), synchronous machines, inverter-based resources, and protective relays may all respond adversely to abrupt phase displacement even when voltage magnitude depression is moderate. As electrical systems continue transitioning toward inverter-dominated architectures, sensitivity to waveform synchronization and phase stability is increasing.
This paper describes the underlying mechanisms of phase angle jumps, explains why they evade standard monitoring, outlines field identification and presents practical mitigation strategies.
What is a Phase Angle Jump?
Electrical power systems are designed around sinusoidal waveforms operating at a stable frequency. Equipment synchronized to the electrical system implicitly depends on this stability. During a phase angle jump, the waveform timing shifts suddenly relative to its previous position. The voltage magnitude may decrease simultaneously, particularly during fault conditions, but the defining characteristic of the disturbance is the abrupt change in angular position. The result is a displacement in zero-crossing timing and waveform peak location even when the RMS voltage remains partially intact.

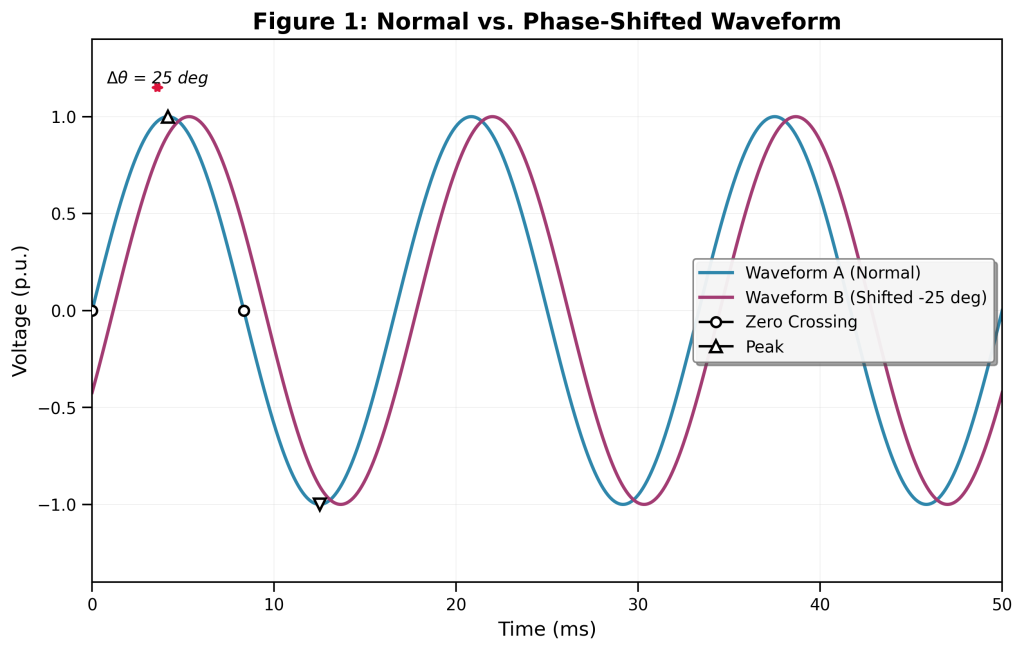

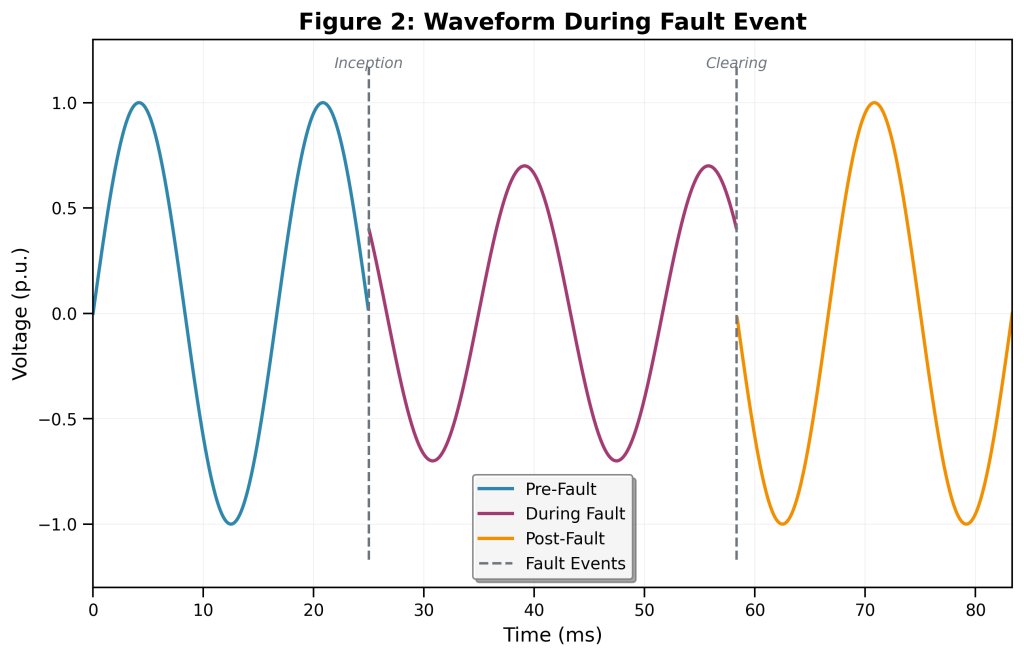

Figure 1 illustrates a normal voltage waveform compared with the same waveform following an abrupt phase displacement. Figure 2 shows a representative fault event in which both voltage sag and phase displacement occur simultaneously.
From an engineering perspective, voltage is commonly represented as a phasor consisting of both magnitude and angle:

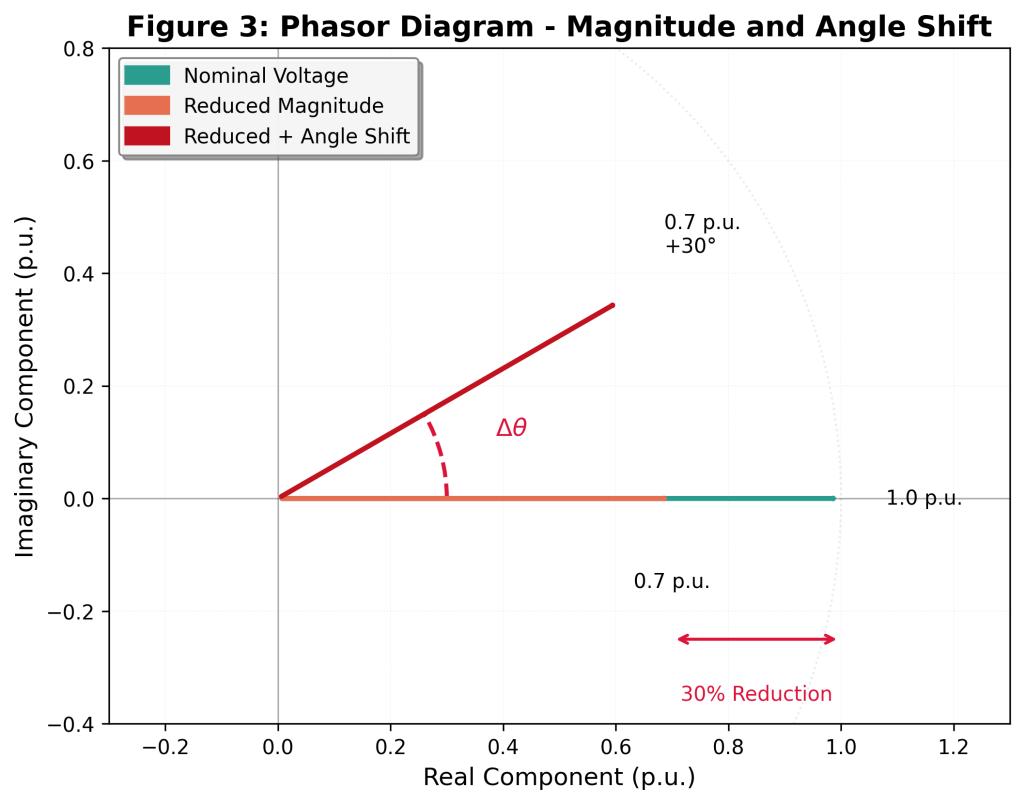

Under steady-state conditions, the phase angle θ changes smoothly with system frequency. A phase angle jump occurs when θ changes abruptly over a very short interval. Figure 3 illustrates how voltage magnitude reduction and angular displacement may occur simultaneously during a disturbance.
Fault current interacting with system impedance alters both the amplitude and angular position of the voltage phasor. The largest observable phase jumps are typically associated with asymmetrical disturbances where each phase experiences different voltage depression and angular displacement. This matters because many modern devices respond to waveform timing and synchronization rather than RMS voltage magnitude alone. A disturbance that appears moderate in conventional RMS trending may therefore produce substantial operational consequences when viewed from the perspective of synchronization-sensitive equipment.
Why do Phase Angle Jumps Occur?
When a fault occurs, current flows through source and feeder impedance, altering the voltage phasor seen throughout the surrounding network. Because system impedance contains both resistive and reactive components, the resulting voltage disturbance generally includes angular displacement in addition to magnitude reduction.
The severity of the phase angle displacement is strongly influenced by a mismatch between the ratio of the source impedance and the feeder/fault impedance. When these ratios differ significantly, the current path changes the impedance angle, causing the voltage phasor to shift abruptly. Systems with high inductive reactance tend to exhibit larger angular displacement during disturbances because the fault current shifts relative to the system voltage. As the electrical network transitions between pre-fault, faulted, and cleared states, the voltage phasor may move abruptly between operating points.
Fault clearing events can produce additional phase displacement. When protective devices isolate the fault, the system voltage rapidly returns toward its pre-disturbance condition. The resulting transition may appear as a second abrupt phase movement, particularly when switching occurs near peak waveform displacement.

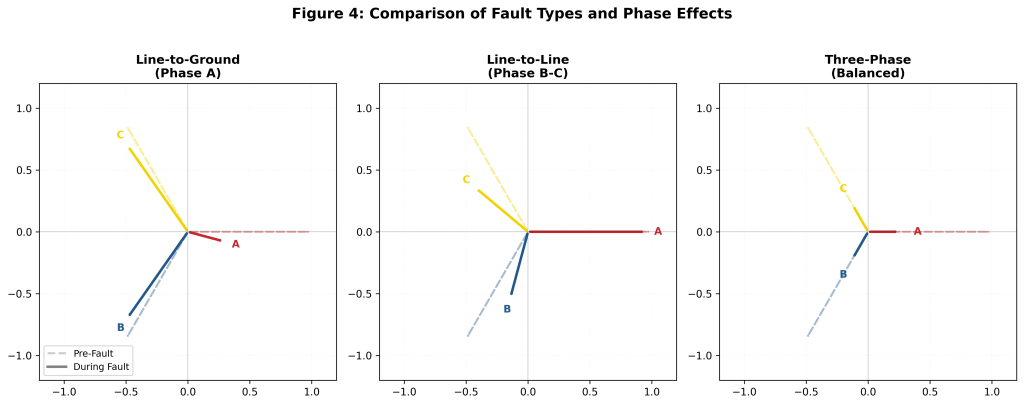

The magnitude and distribution of the phase jump depend on fault type. Asymmetrical faults often produce the largest observable angular disturbances because each phase experiences different sequence component contributions and impedance conditions. Figure 4 compares representative phase behavior during several common fault types.
During line-to-ground faults, negative- and zero-sequence components distort the normal phase relationships between conductors, producing unequal angular displacement between phases. Three-phase balanced faults, by contrast, often produce comparatively smaller observable phase displacement because the system remains more symmetrical despite the voltage depression.
Switching operations are another common source of phase angle jumps. Energizing large transformers or motors can abruptly alter local system impedance and current flow. Capacitor bank switching may introduce oscillatory behavior and temporary phase displacement as the network settles into a new steady-state condition.
Utility reclosing operations are particularly important operational contributors. Following temporary faults, breakers may automatically reclose after a brief dead time. If the isolated section has drifted out of phase relative to the source, the reclose event can produce significant angular displacement and associated current stress.
Additional contributors include feeder transfers, islanding events, distributed energy resource (DER) resynchronization, and abrupt large-load transitions. In systems with high penetration of inverter-based resources, interactions between inverter control loops and weak-grid conditions may further increase susceptibility to phase instability.
From a field operations perspective, phase angle jumps are most likely during storm restoration, switching operations, feeder reconfiguration, capacitor switching, or large motor starting events. These disturbances may occur without obvious visible equipment damage or sustained outage conditions, complicating diagnosis when only limited monitoring data is available.Impact on Sensitive Equipment and Operations
Modern electrical equipment increasingly relies on synchronization-sensitive control systems operating much faster than conventional electromechanical devices. As a result, short-duration phase displacement events may produce consequences disproportionate to their apparent severity in RMS-based monitoring. Variable frequency drives and other inverter-based systems are among the most sensitive equipment. Most modern drives use phase-locked loops (PLLs) to maintain synchronization between the incoming AC waveform and internal control electronics. Abrupt phase displacement can temporarily destabilize this synchronization process. When the incoming waveform angle shifts rapidly, the PLL may momentarily lose synchronization or attempt to reacquire phase alignment under unstable conditions. Depending on the drive topology and operating state, this can produce DC bus overvoltage, regenerative current flow, overcurrent conditions, or protective shutdown. The consequence is frequently process interruption rather than equipment damage, but industrial facilities may experience nuisance tripping, transfer events, or coordinated process shutdown despite voltage magnitude remaining within nominal ride-through limits.

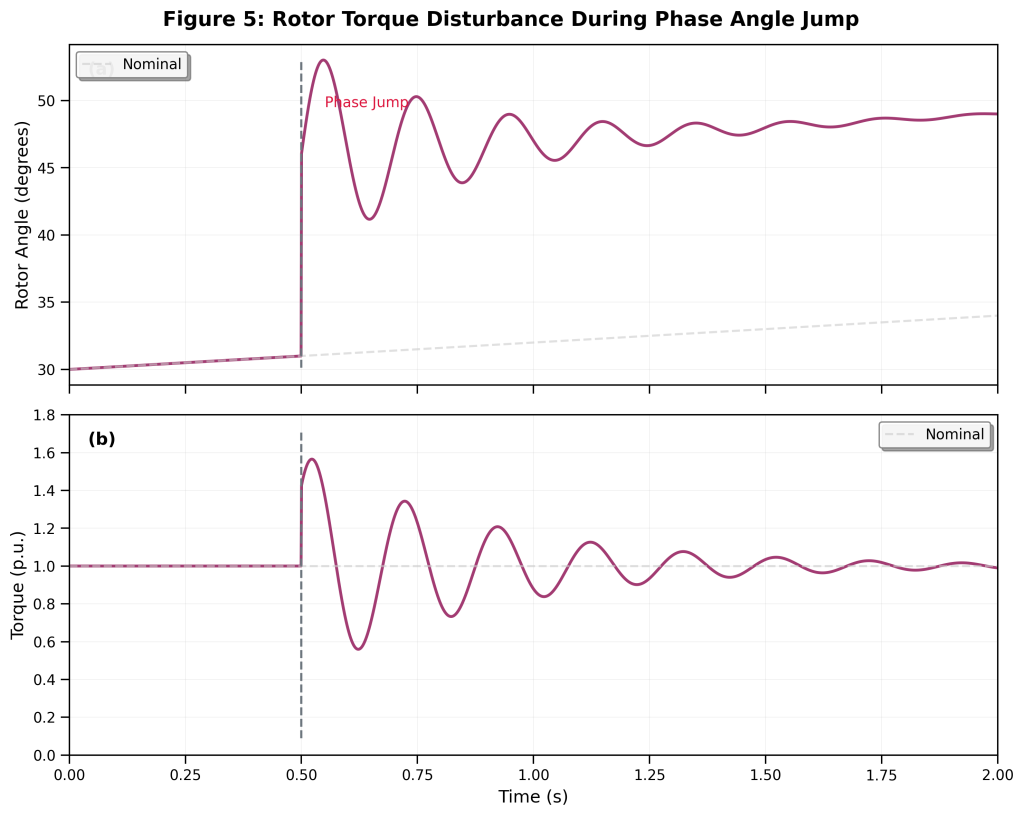

Synchronous motors and generators are also sensitive to abrupt angular displacement because electromagnetic torque depends directly on rotor-to-stator angular alignment. A sudden phase shift changes the relative position between the rotating magnetic field and the machine rotor. Figure 5 illustrates representative rotor torque oscillation following abrupt phase displacement. Under severe conditions, the resulting torque pulsation can impose substantial mechanical stress on shafts, couplings, and connected rotating equipment. Repeated disturbances may contribute to long-term mechanical fatigue or stability concerns.
Static transfer switches and automatic transfer systems rely heavily on phase comparison logic to determine acceptable transfer conditions. Abrupt phase displacement may cause unnecessary transfers, delayed transfers, or transfer inhibition depending on the system configuration. Out-of-phase transfers can produce large transient currents and mechanical stress on downstream equipment. Protective relays may also respond unexpectedly during phase jump events. Vector-shift detection elements, distance protection, and differential schemes can all exhibit sensitivity to abrupt phase displacement under certain conditions. Figure 6 shows representative relay oscillography associated with a phase angle jump event. These operations are not necessarily incorrect. Rather, the relay is responding to a legitimate change in waveform timing and system operating state. Misinterpretation often occurs because conventional RMS trending does not adequately represent the disturbance observed by the protective element.
Additional effects may include transformer flux offset, inrush-like current behavior, and instability in inverter-based generation systems. As electrical networks incorporate larger numbers of grid-following inverters, system sensitivity to waveform synchronization and phase stability is expected to increase further. Historically, many rotating-machine loads tolerated moderate phase disturbances naturally because of their mechanical inertia and comparatively slow response characteristics. Modern electronically controlled systems operate with substantially narrower synchronization margins and faster protective response.
Measurement and Identification in the Field

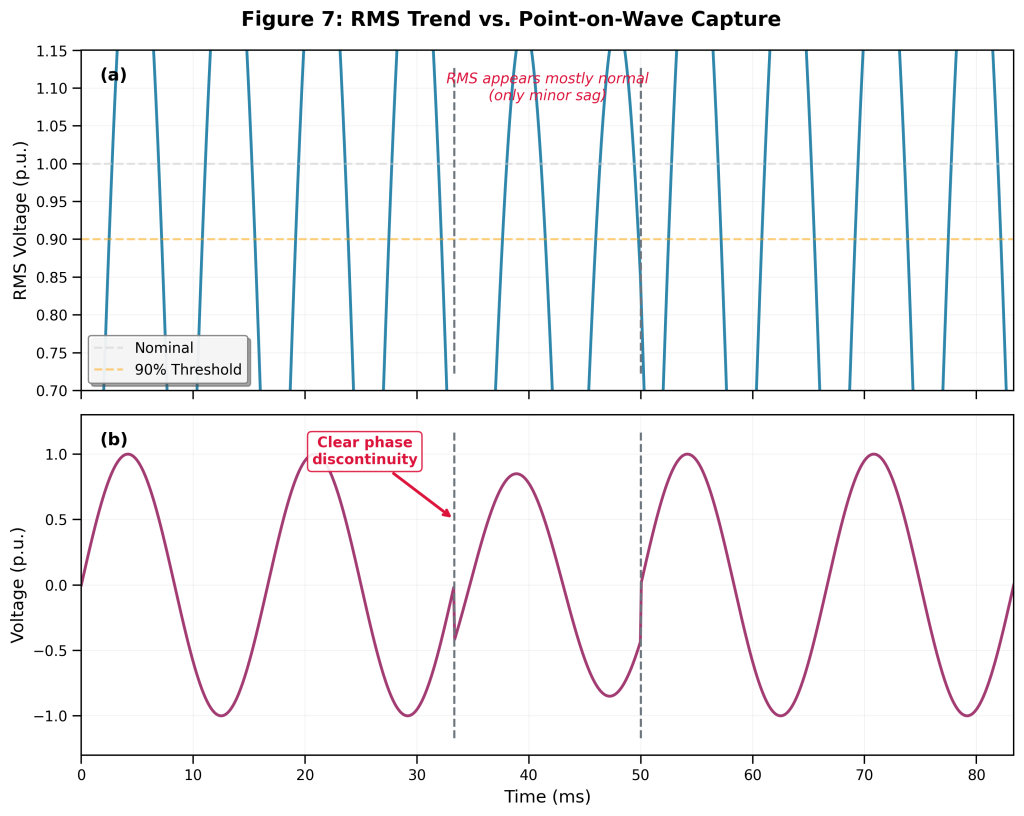

Phase angle jumps are frequently underreported because most installed monitoring infrastructure prioritizes RMS voltage magnitude and duration rather than instantaneous waveform timing. Conventional SCADA systems and many standard power quality monitors operate using averaging windows that may obscure rapid angular displacement. Figure 7 compares a representative RMS voltage trend with the corresponding point-on-wave waveform capture. RMS voltage may appear only moderately disturbed while the underlying waveform exhibits substantial timing displacement. This mismatch between measurement domain and equipment response is a primary reason why phase jump events are often categorized as unexplained or nuisance disturbances.
Effective identification generally requires high-resolution waveform capture. Sampling rates sufficient to observe sub-cycle timing behavior are necessary because the disturbance mechanism is fundamentally associated with waveform phase rather than sustained magnitude variation.

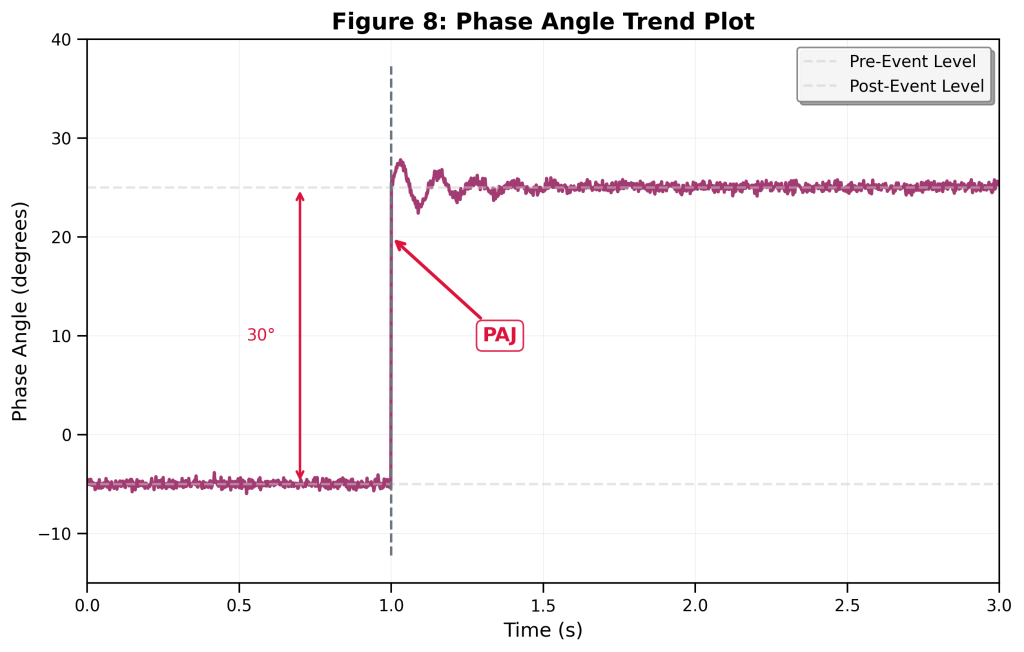

Several visual indicators are commonly associated with phase angle jumps: abrupt zero-crossing displacement, discontinuous phasor movement, sudden changes in calculated phase angle and synchronization instability coincident with switching or fault events. Figure 8 illustrates a representative phase-angle trend plot showing abrupt angular displacement during a disturbance.

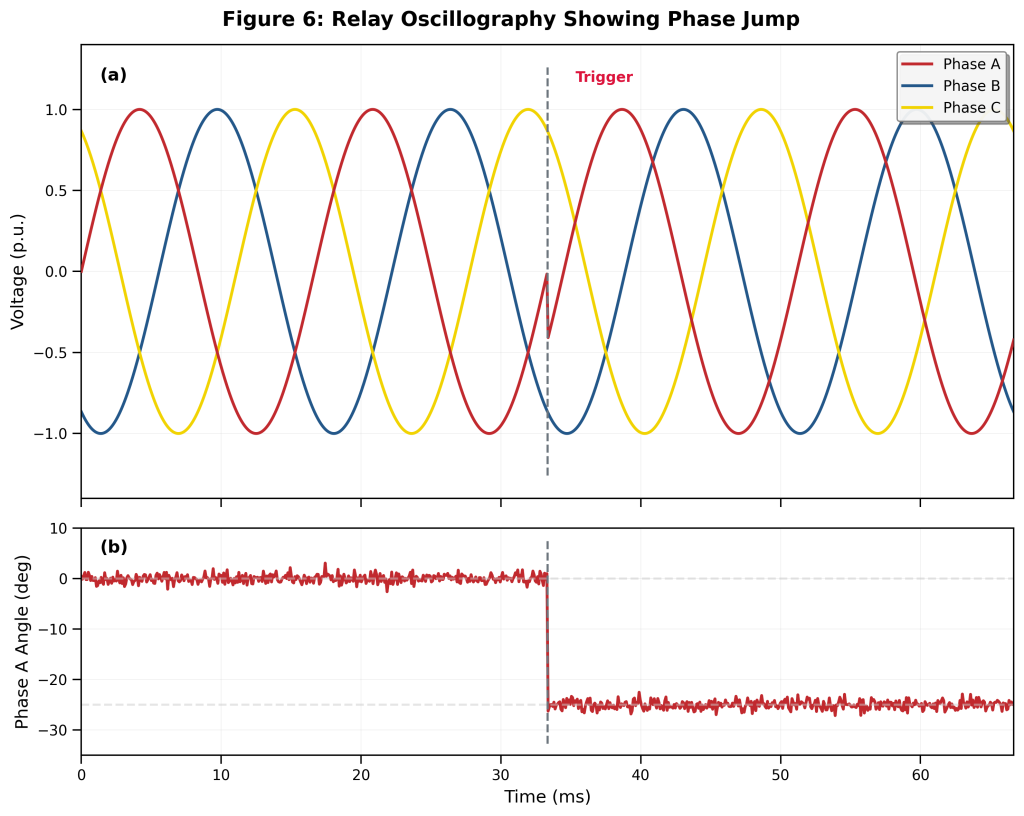

Modern digital fault recorders, relay oscillography and advanced power quality analyzers are often capable of capturing these events when configured appropriately. Trigger settings should prioritize waveform capture during faults, switching operations, transfer events, or rapid phase-angle deviation. From a practical operations perspective, the fastest field indicator is often coincidence between unexplained equipment operation and switching or fault activity elsewhere on the system. Even when RMS magnitude appears acceptable, abrupt phase displacement may still be present within the underlying waveform record. Forensic analysis should not solely focus on voltage magnitude, but on waveform timing continuity and synchronization behavior across the disturbance interval.
Mitigation Strategies
Effective mitigation of phase angle jump disturbances requires coordination between equipment behavior, protection philosophy, and overall system design. Because the disturbance mechanism is fundamentally associated with synchronization and waveform timing, mitigation strategies focused solely on RMS magnitude are often insufficient. At the equipment level, many modern drives and inverter systems allow adjustment of PLL bandwidth, ride-through characteristics, and synchronization tolerances. Proper configuration can improve resilience to short-duration angular displacement while preserving stable operation under normal conditions. Online double-conversion UPS systems are particularly effective because they decouple the output waveform from the incoming utility phase angle.
Input reactors, active front ends, and properly designed filtering may also reduce susceptibility to abrupt phase movement. At the system level, transformer configuration and impedance management influence the severity of observable phase displacement during faults and switching events. System X/R ratio, grounding configuration, and transformer winding arrangement all affect how angular disturbances propagate through the network. Careful switching coordination is also important. Synch-check relays and controlled reclosing logic help prevent severe out-of-phase transfer events by verifying acceptable phase alignment before breaker closure.
Dynamic Voltage Restorers (DVRs), series compensation systems, and other power-conditioning technologies may provide additional mitigation in environments where synchronization-sensitive loads are critical. Operationally, utilities and facilities benefit from coordinated review of: switching practices, reclosing logic, DER interconnection behavior, protective relay settings, and waveform monitoring capability.
Holistic monitoring programs incorporating waveform capture, relay oscillography, and synchronized event recording significantly improve the ability to distinguish between magnitude disturbances and timing-related events. As inverter-based generation and electronically controlled loads continue to increase across utility and industrial systems, maintaining phase stability and synchronization visibility will become progressively more important components of power quality management.
Conclusion
Voltage phase angle jumps are common but frequently under-recognized electrical disturbances. Although they often accompany faults, switching operations, and system reconfiguration events, their operational impact is not always visible through conventional RMS-based monitoring alone. Many unexplained trips, transfer events, and synchronization-related disturbances can be understood more effectively when waveform timing and phase displacement are evaluated directly.
Modern electrically controlled systems — including VFDs, inverter-based resources, static transfer equipment, and digital protection systems — increasingly depend on stable waveform synchronization in addition to acceptable voltage magnitude. As electrical networks evolve toward higher penetration of inverter-based resources and faster electronic control systems, the operational importance of phase stability is likely to increase further. Effective diagnosis and mitigation therefore require moving beyond magnitude-only monitoring toward waveform-level analysis and coordinated time-domain investigation. Improved collaboration between utility personnel, engineers, operators, and field teams will remain essential for identifying, understanding, and mitigating these increasingly important disturbances.
