Name: Revolution
SKU: REV-1
Availability: InStock

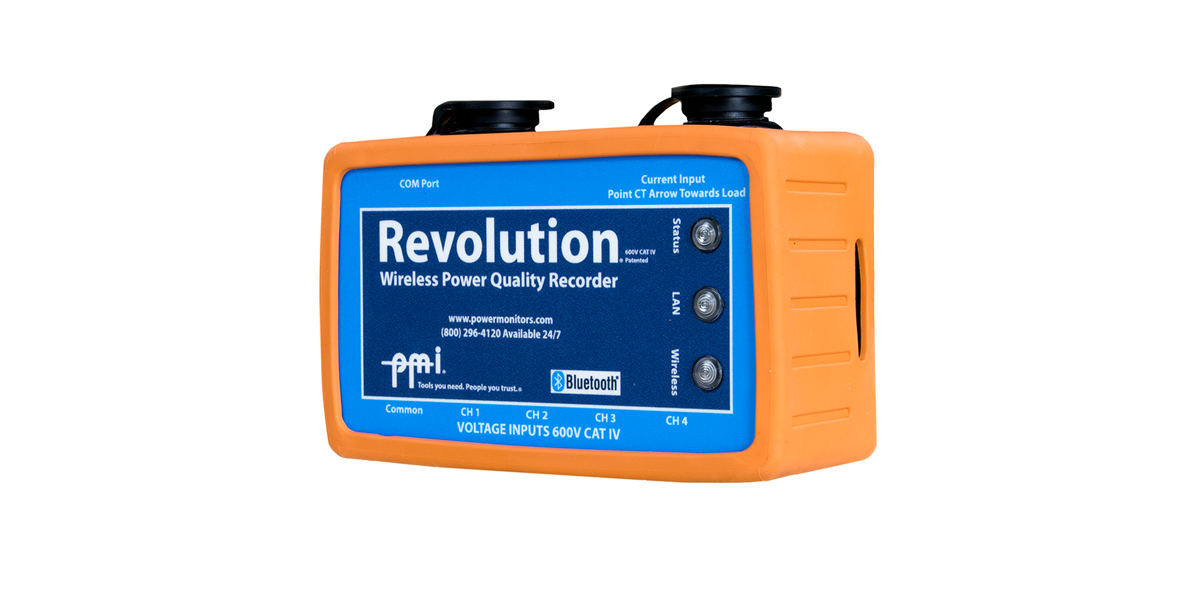

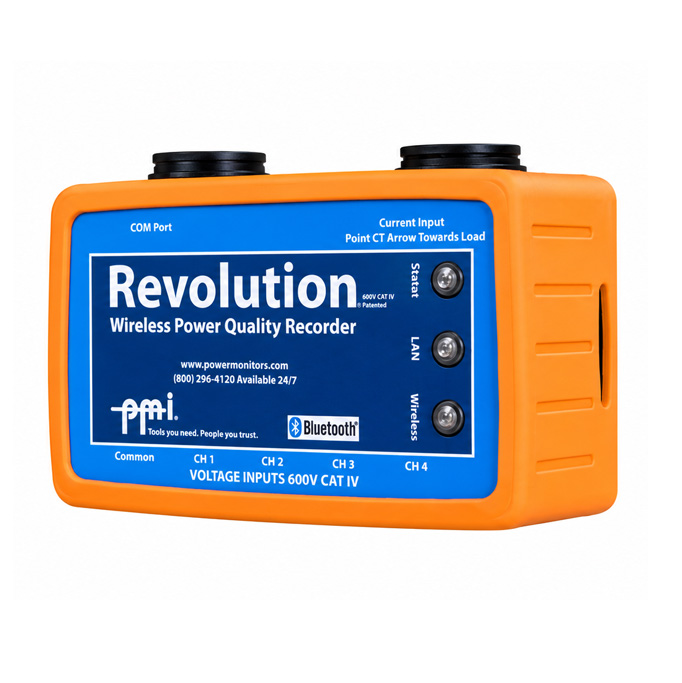

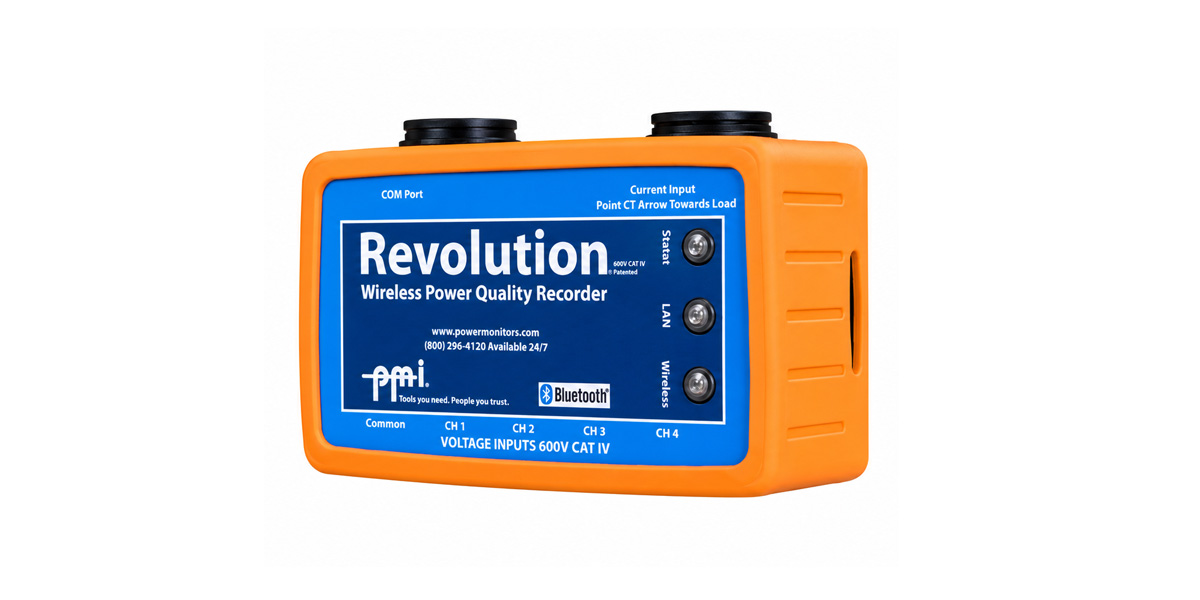

Overview

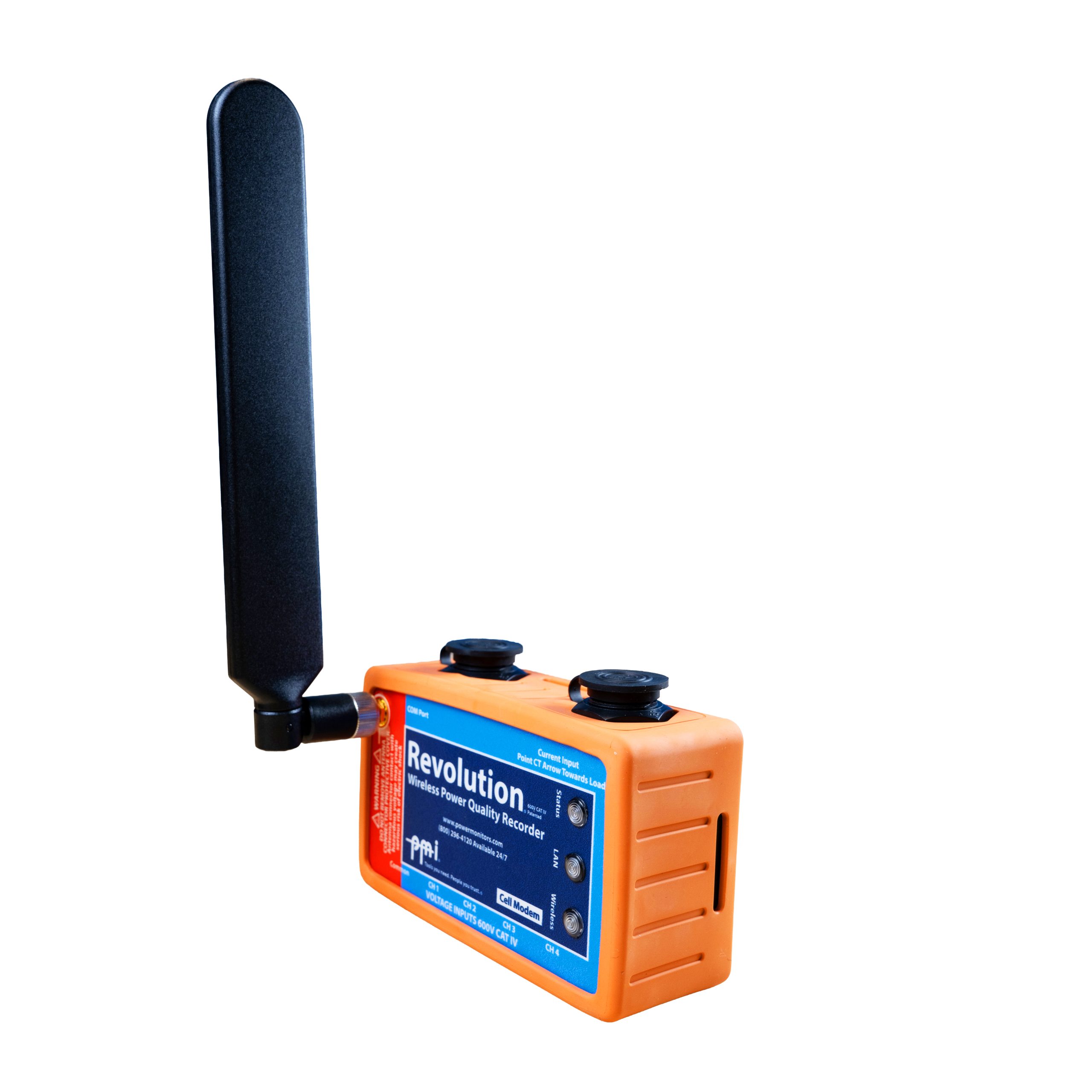

Reduce fleet and labor costs with this small, rugged, lightweight recorder. The Revolution allows you to retrieve data wirelessly with Bluetooth®. The Cell Revolution allows you to retrieve data wirelessly from anywhere you have an internet connection. The included ProVision software lets you monitor current, flicker, voltage, power, and more from your desktop, a laptop, or a PDA to monitor data from the field.

600V CAT IV

Allows use in a wide range of monitoring environments.

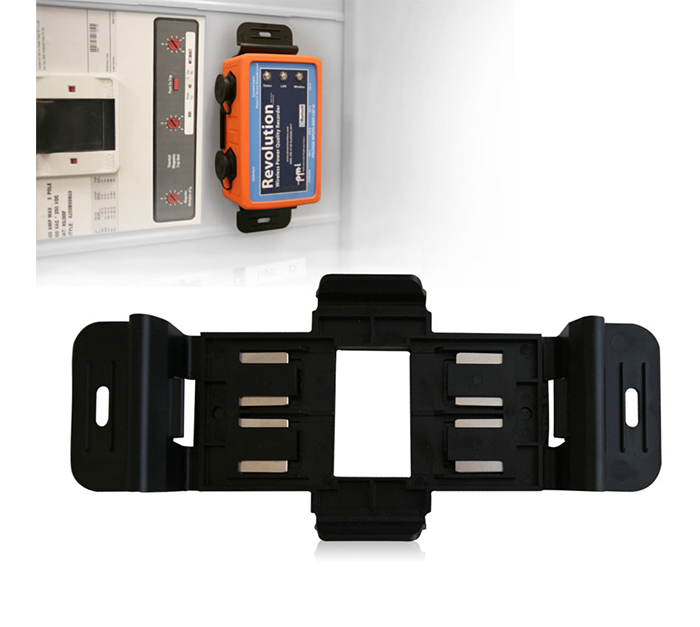

Pocket-size

Can be installed inside meter bases, transformers, and panels.

Bluetooth®

Stay safe with wireless data behind closed panel covers.

USB and built in Ethernet Networking (Optional)

For permanent installations.

High sampling rate

Captures high speed transients up to 5000V and 1 MHz.

UL listed

Increased user safety

Large memory capacity

Longer monitoring time and very high resolution wave capture.

Specs

Inputs

AC Voltage: 0 to 600 RMS continuous per phase (±5 kV peak transients)
AC Current: 0 to 5000 Amps
Sample Rate: 1 MHz Voltage (16666 samples/cycle), 250 kHz current (4166 samples/cycle)

Channels

Voltage: 4 channels
Current: 4 channels

Measured Quantities Per Cycle

RMS Voltage: Volts
RMS Current: Amps
Real Power: Watts
Apparent Power: VAs
Reactive Power: VARs
Phase Angle: Degrees
Power Factor: Watts/VA
Displacement PF: cos (phase angle)
Power Usage: kWh, kVARh, kVAh

Accuracy

Voltage: 0.33% of full scale
Current: 1.0% of full scale w/o probe
Power: 1.0% of full scale w/o probe
Phase Angle: 1.0° w/o probe
Power Factor: ±0.02 w/o probe
Displacement PF: ±0.02 w/o probe

Power Fail Operation

The recorder can operate without any input voltage for up to 30 minutes. This allows it to record down to 0 volts on all channels during power outages.

Harmonics

Voltage: to the 51st
Current: to the 51st
Measures: Magnitude, phase, THD

Communications

Standard: USB
Options: Ethernet

Information Storage

Data Storage: 16 MB (Standard); 128 MB, 512MB or 1 GB (Optional)
Significant Change: 1000 records
Flicker: 1000 records

Record Settings

Interval Graphs: 1 cycle to 4 hour interval, user selected, stop-when-full or wrap-around memory modes Significant Change: 1V to 8V in 1V steps
Flicker Settings: User-defined, or conform to IEEE 1453/IEC 61000-4-15, and IEEE Std. 141
Waveform Capture: Voltage and current threshold, periodic capture, waveshape, event cross triggers Transient Capture : Peak voltage threshold

Power Supply Requirements

Voltage: 60-600VAC Channel 1 to Common (47-63Hz)
Power Consumption: 5 Watts max, 15 VA max at 600V

Environmental

Operating Temp: -20°F to +135°F
Humidity : Less than or equal to 85%
Shock: 60 Hz to 2 kHz, acceleration 25G
Vibration: 10Hz to 60Hz, amplitude 1.8mm
Max Altitude: 2.0km (6560 ft), derated above 2.0km

Revolution
