Features & Benefits

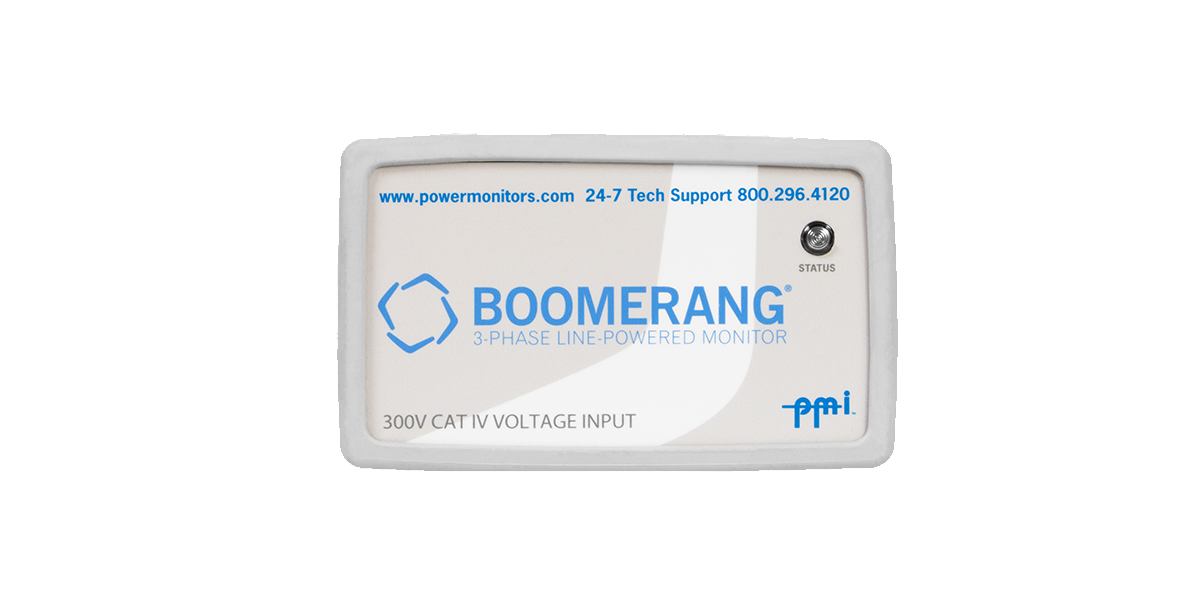

The Boomerang 3-Phase Voltage and Current Monitor is pocket-sized and engineered to deliver consistent, high-accuracy voltage measurements across a broad operating range, allowing utilities to capture reliable data in both standard and elevated voltage environments. With a voltage input range of 80–300V RMS, extendable to 600V when utilizing PoE, the device adapts to diverse deployment scenarios without compromising measurement integrity. Its 0.50% voltage accuracy and fine 0.1V resolution provide the level of precision required for identifying subtle variations in system performance.

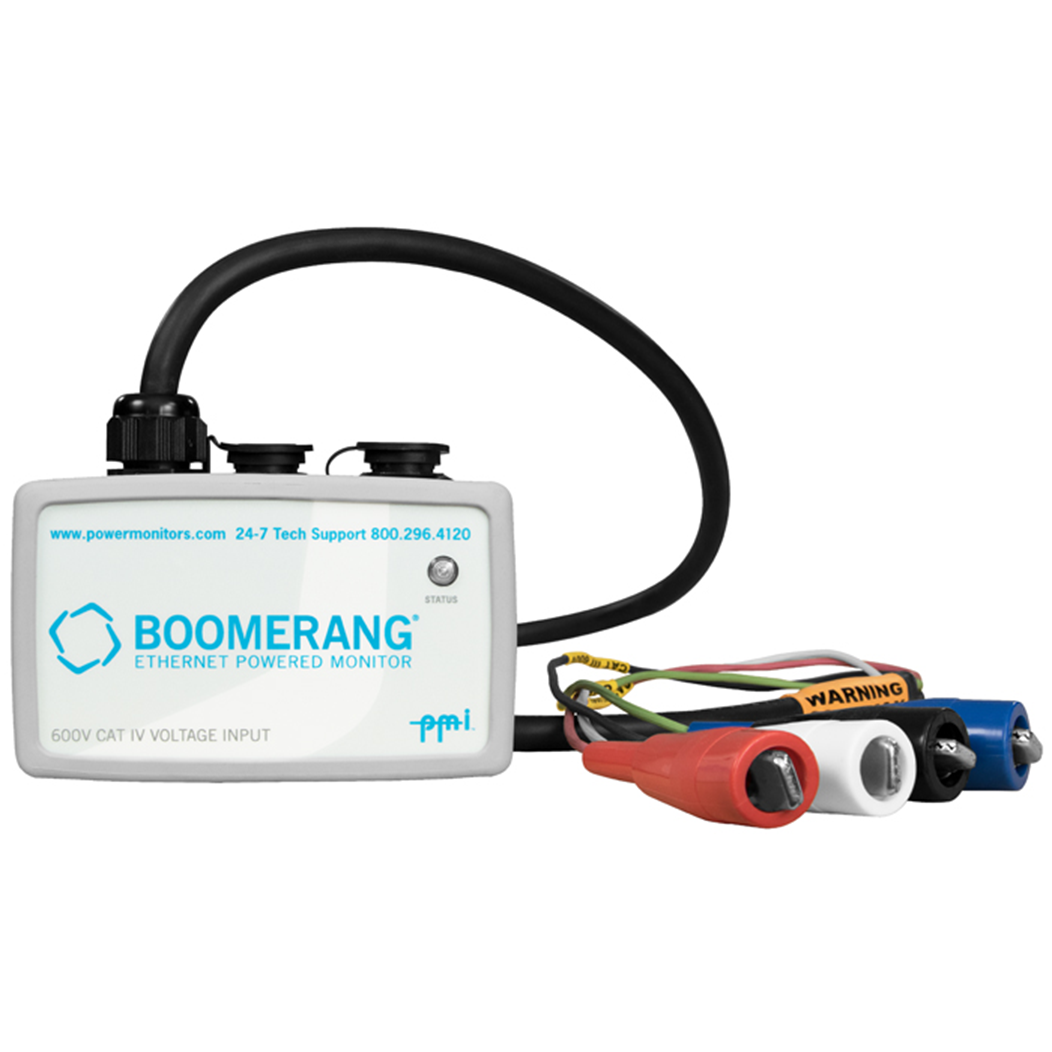

Optional power measurement capabilities, with an accuracy of 1%, expand the device’s usefulness by enabling additional insight into system behavior when needed. Communication flexibility is a key advantage, with a standard LTE cell modem supporting remote deployments and optional 10/100 Ethernet connectivity for integration into existing network infrastructure. The optional Power over Ethernet (PoE) interface removes the requirement to power from the channel 1 voltage input, and allows for voltage inputs up to 600V.
Designed for real-world field conditions, the Boomerang 3-Phase operates reliably across a wide temperature range from -22°F to 130°F. Its compact size and lightweight construction allow for efficient installation, while the weatherproof NEMA 4X enclosure provides protection against harsh environmental exposure. Together, these characteristics support dependable, long-term monitoring in utility and industrial applications.
Integrated DNP3 functionality supports seamless SCADA integration through TCP or UDP cellular connections. Flexible unsolicited report-by-exception triggers allow the device to work effectively with CVR and DMS systems, while analog and binary DNP3 points provide access to RMS voltage, current, power, frequency, and modem signal strength data.
Because PMI’s PQ Canvass data analysis software is browser-based, no software downloads are required. Utilities can easily manage user accounts, configure preferences, and set up distribution lists while securely accessing monitoring data from virtually anywhere.
