Atom Wireless Environmental Monitor

Features & Benefits

Cloud-Based Recording:

Use the Atom for instant alerts from environmental problems and combine with cloud-based PQ Canvass to track trends and verify compliance.

Communication Options

The Atom uses Bluetooth Low Energy (BLE) communications. Connect the Atom to your iOS device to adjust Atom settings, view live readings, transfer stored data, and configure thresholds.

Wireless Monitoring

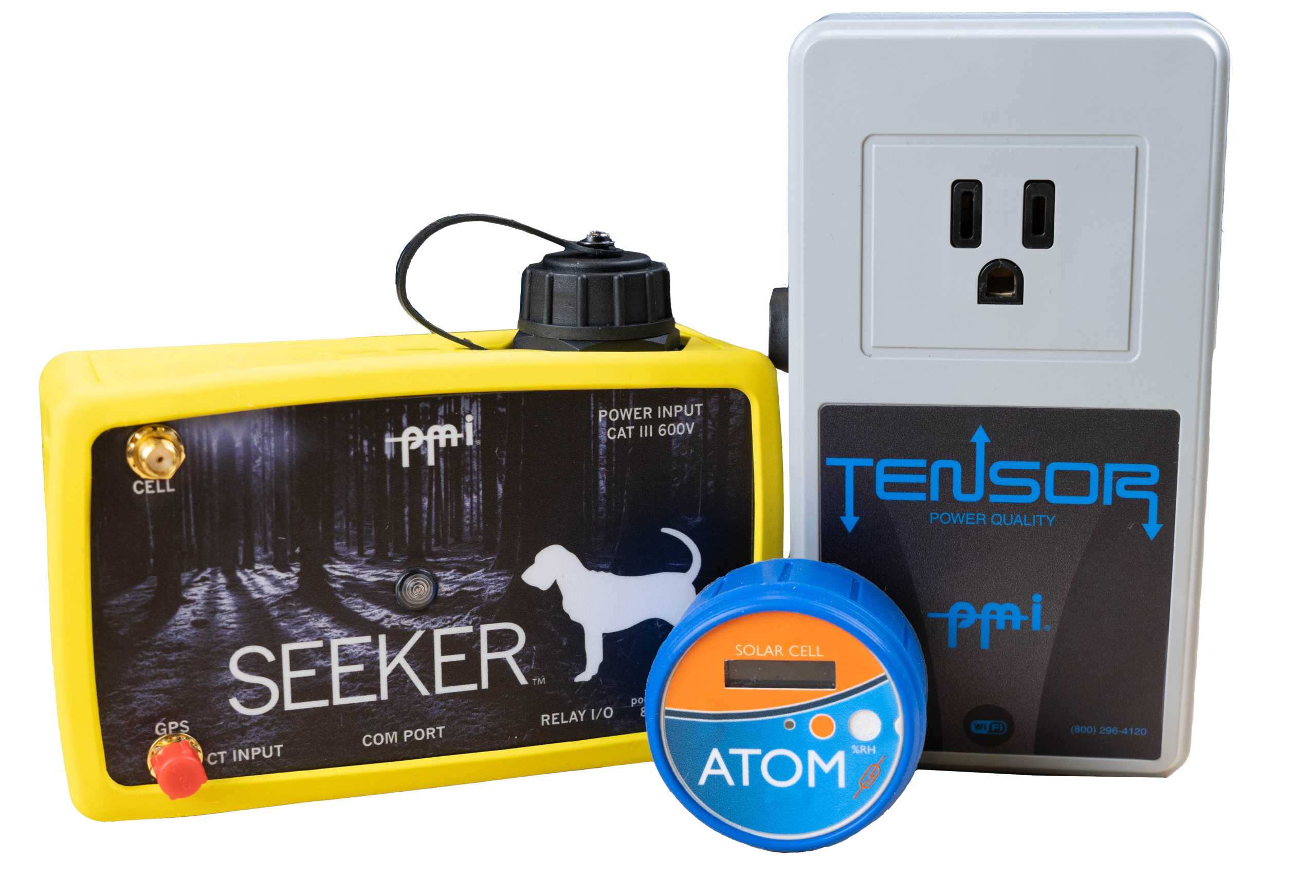

Pair an Atom with a Seeker, Tensor, or cell phone to upload stored environmental data to PQ Canvass, enabling long-term tracking and instant email/SMS alerts. Use a Tensor or Seeker as a hub for many Atoms to monitor multiple zones.

Specs

Temperature

-20°C to 60°C

Pressure

500 – 1100 hPA

Humidity

10 – 95% RH

Solar Flux

100 – 100,000 lux

Environmental Rating

IP68

Communication

Wireless BLE 5.0 Radio
Sensor data read every minute

Power Supply

10 year battery life

Physical Dimensions

Weight: 2 ounces

Magnetic Reed Switch

Door Closure Detection

Information Storage

1 year of on-board memory

Acceleration Drop Vibration Detection

Downloads

Software

• Atom iOS App
• PQ Canvass

Documents

• Atom User Manual
• Atom Quickstart Guide

Specification Sheet

• Atom Spec Sheet

Software

Expand the Atom’s Data Analysis Capabilities

PQ Canvass

Power Monitors’ PQ Canvass is the premiere way to view and analyze power quality data. Born from Canvass, our first generation cloud-based system, PQ Canvass is a powerful platform to collect, analyze, and get alerts from field devices connected through LTE cell, WiFi, or Ethernet. With connected devices and PQ Canvass come instant alerts, unlimited PQ data storage, and powerful reporting tools. Versatility is an important factor in PQ Canvass, allowing one to view data both in the office on a desktop, and on-the-go using a tablet or smartphone; the only requirement is internet access.

Learn more about PQ Canvass →

---

Merlin™

Merlin™ reads every waveform, chart, and compliance report in your PQ Canvass account—then writes the summary you’d spend hours creating. It identifies what matters, cites IEEE and ANSI standards, and explains each event in clear, human language. No guessing, no black box—just faster, defensible insight you can trust. With Merlin™, engineers spend less time digging through data and more time solving real power-quality problems.

Learn more about Merlin™ →

Have a power quality question? Ask Merlin™ — free. Email askmerlin@powermonitors.com or text (540) 383-3144.
