Overview

Features & Benefits

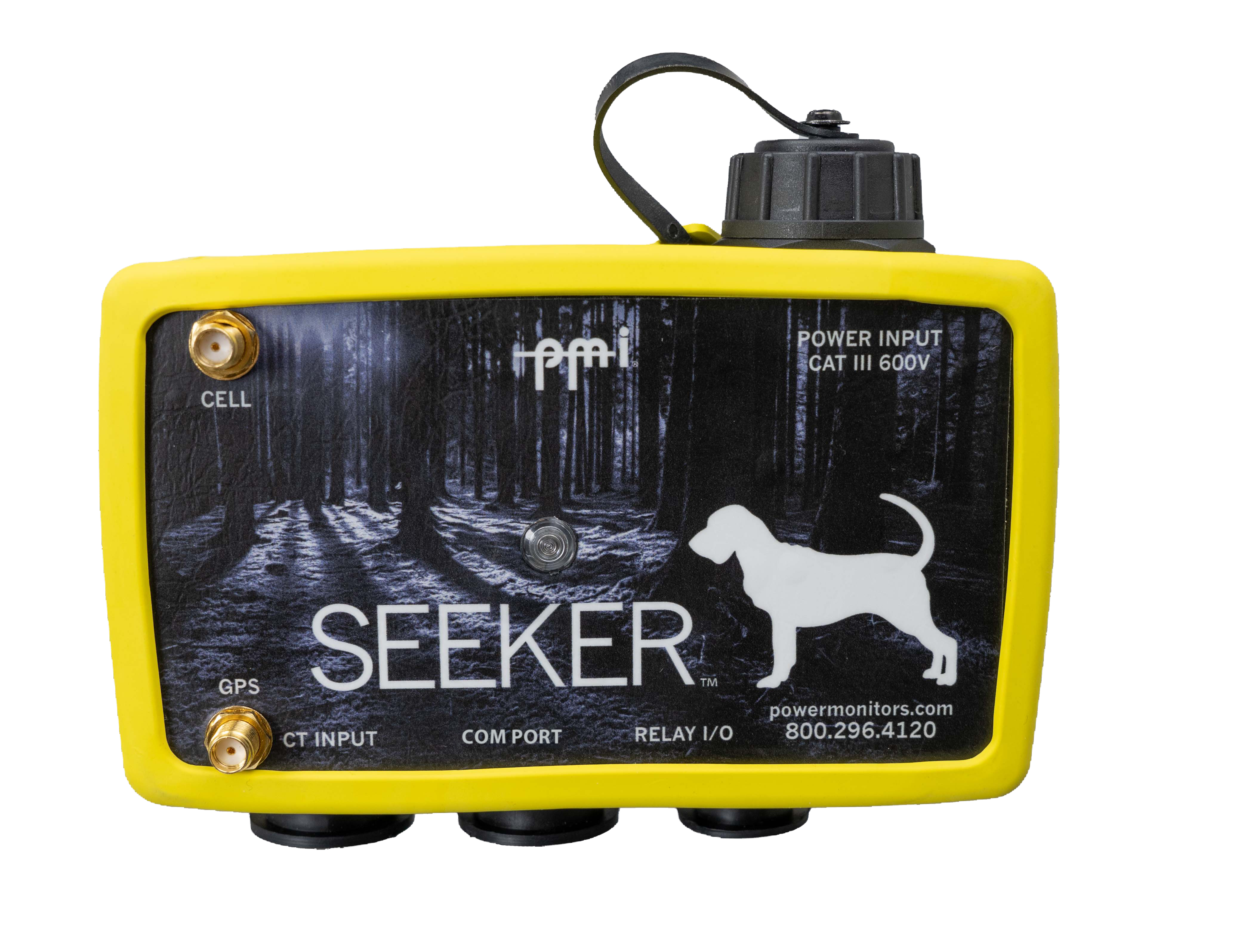

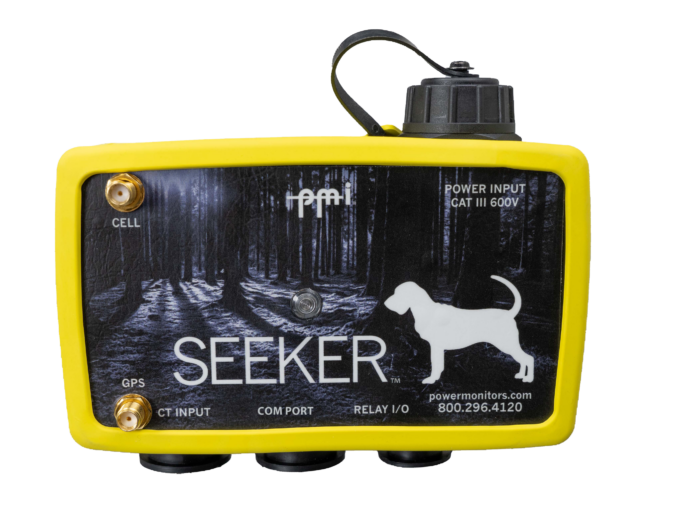

The Seeker provides advanced power quality recording with integrated wireless communication and digital I/O in a small weatherproof, line-powered device. Designed for investigative work, smart grid distribution monitoring, and remote control applications, the Seeker is a one size fits all PQ solution.

Cloud-based Recording

The Seeker continuously streams PQ data to cloud-based PQ Canvass. Use a web browser to analyze the latest data instantly, without downloading.

Control Options

Use the internal dual Form C relays to control distributed generation or other equipment through SCADA or automatically based on measured values. Two isolated digital inputs provide status or other equipment monitoring.

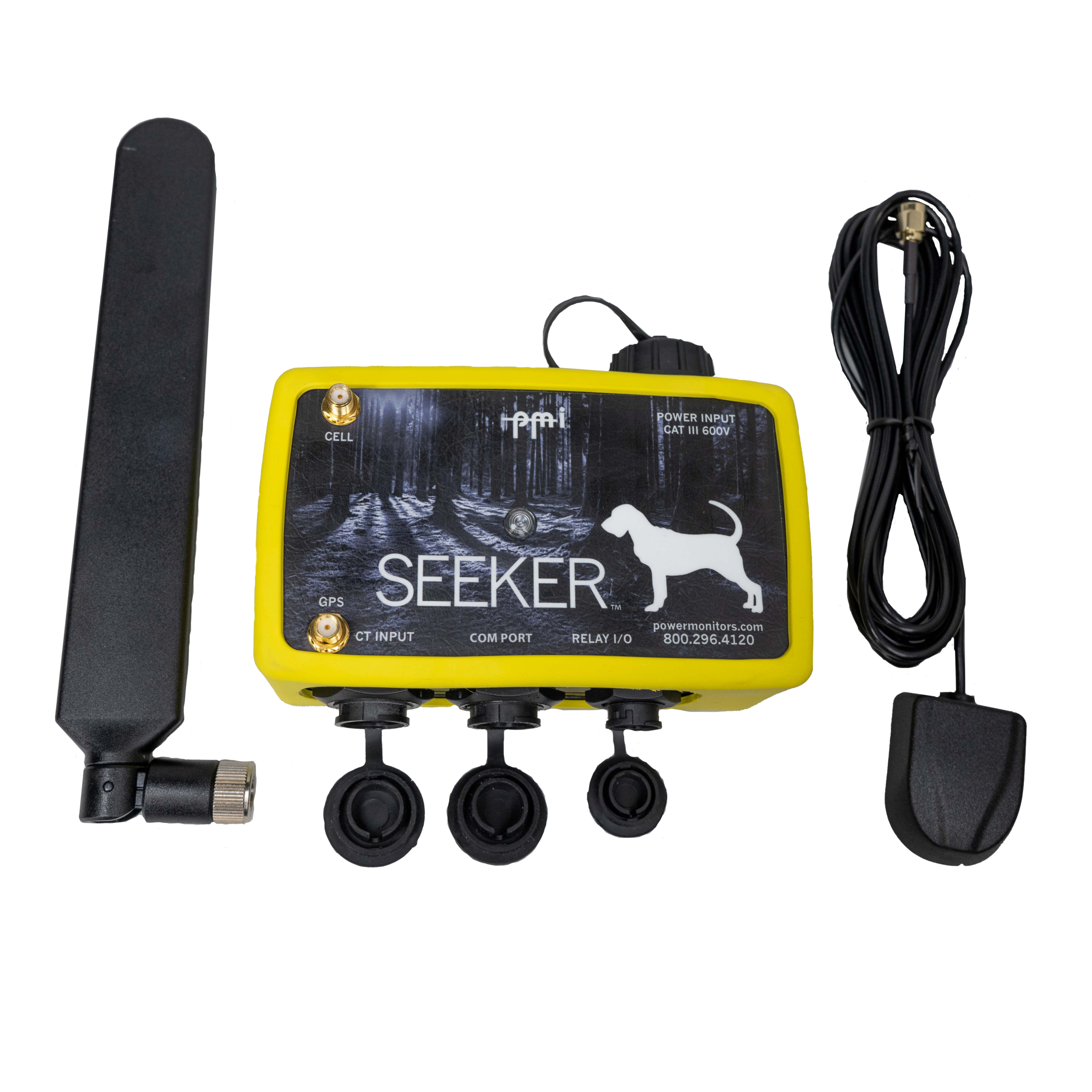

Communication Options

The Seeker includes several communication options:

• Wi-Fi
• Bluetooth Low Energy
• LTE Cellular Modem
• Ethernet
• USB connection is standard on all Seekers

SCADA Compatibility

A full DNP and MODBUS interface over Wi-Fi, Cell or Ethernet exposes all PQ measurements and I/O control functions.

Easy to Install

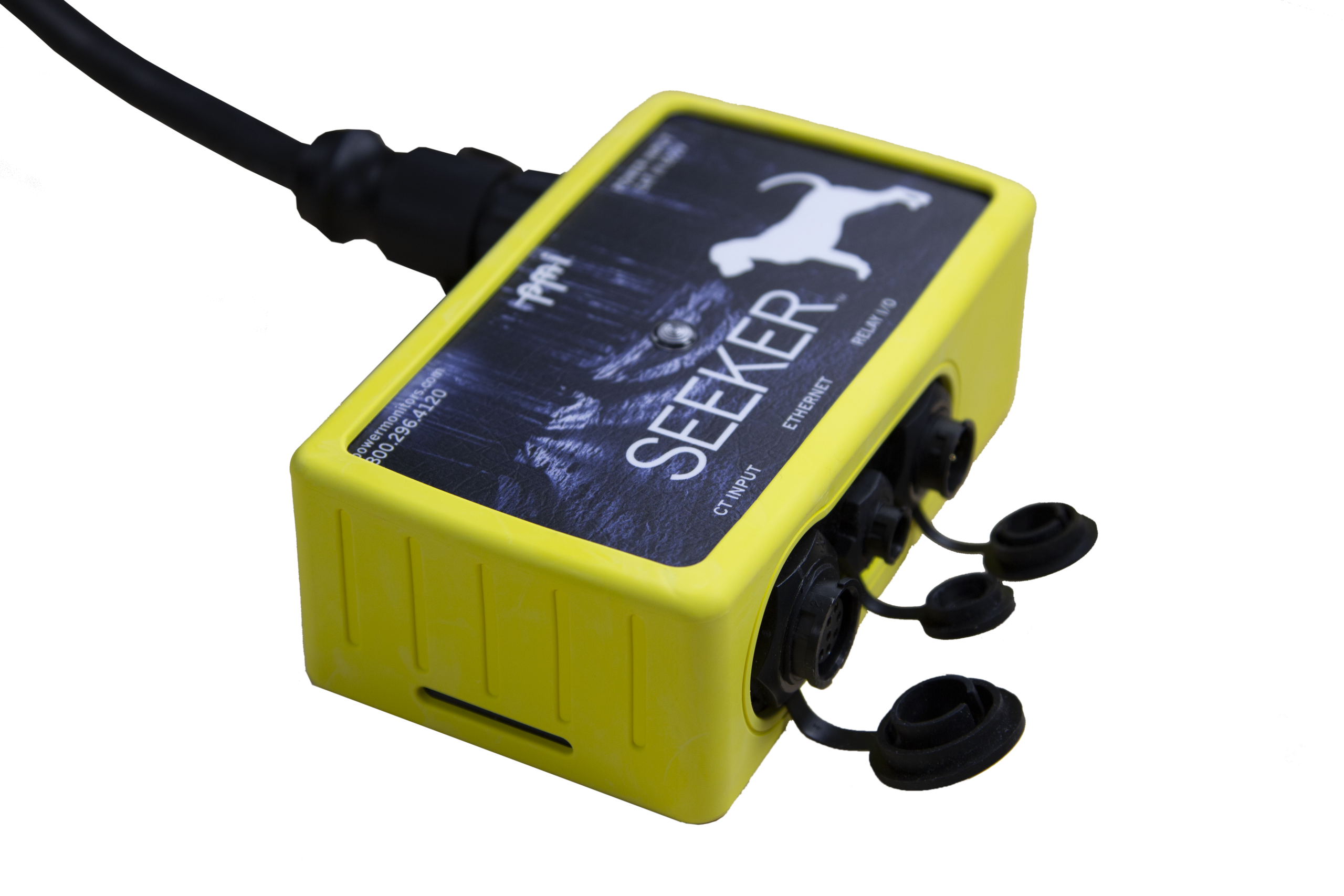

The Seeker’s small weatherproof enclosure contains the AC power supply, wireless communications, relays, and PQ monitor. No external enclosure, power supply, or communications device is needed.

Specs

Inputs

AC Voltage: 0 to 600 RMS continuous per phase

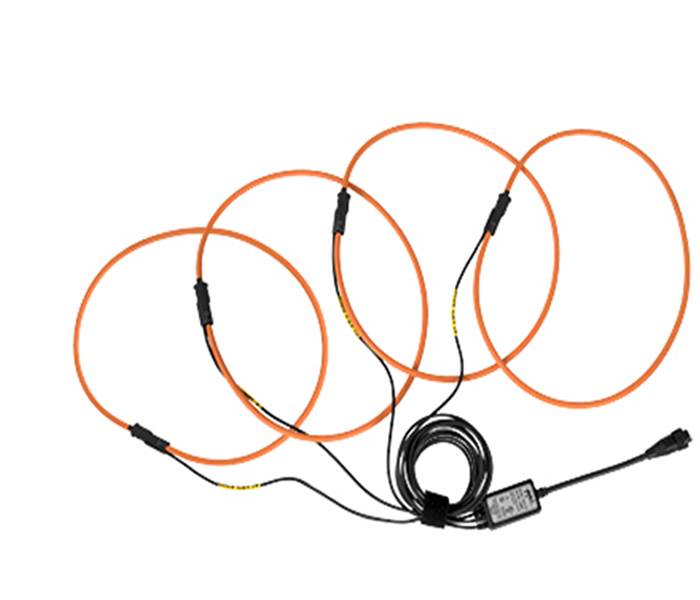

AC Current: 0 to 5000 A RMS
Sample Rate: 250 kHz Voltage (4166 samples/cycle)

Channels

Voltage: 4 channels
Current: 4 channels

Measured Quantities Per Cycle

RMS Voltage: Volts
RMS Current: Amps
Real Power: Watts
Apparent Power: VAs
Reactive Power: VARs
Phase Angle: Degrees
Power Factor: Watts/VA
Displacement PF: cos (phase angle)
Power Usage: kWh, kVARh, kVAh

Accuracy

Voltage: 0.33% of full scale
Current: 1.0% of full scale w/o probe
Power: 1.0% of full scale w/o probe
Phase Angle: 1.0° w/o probe
Power Factor: ±0.02 w/o probe
Displacement PF: ±0.02 w/o probe

Power Fail Operation

One minute of super capacitor ride through power for notifications.

Harmonics

Voltage: to the 51st
Current: to the 51st
Measures: Magnitude, phase, THD

Time Synchronization

User-configurable SNTP time synchronization through Ethernet or cell modem. High resolution timestamping with optional GPS.

Communications

Standard:

• Wi-Fi
• Bluetooth
• USB

Optional:

• LTE Cell Modem
• Ethernet

Information Storage

Data Storage: 144 MB onboard storage, unlimited cloud storage

Record Settings

Interval Graphs: 1 cycle to 4 hour interval, user selected, stop-when-full or wrap-around memory modes
Significant Change: 1V to 8V in 1V steps
Flicker Settings: User-defined, or conform to IEEE 1453/IEC 61000-4-15, and IEEE Std. 141
Waveform Capture: Voltage and current threshold, periodic capture, waveshape, event cross triggers

Relay Outputs

Output type: Dry Contact Form C (1 normally open, 1 normally closed)
Number of Outputs: 2 Independent Relays
Max Switching Voltage: 120V
Max Switching Current: 4 amps

Digital Inputs

Input Type: High Impedance
Number of Inputs: 2
Min Sense Voltage: 60V
Nominal Sense Voltage: 120V
MaxSense Voltage: 150V

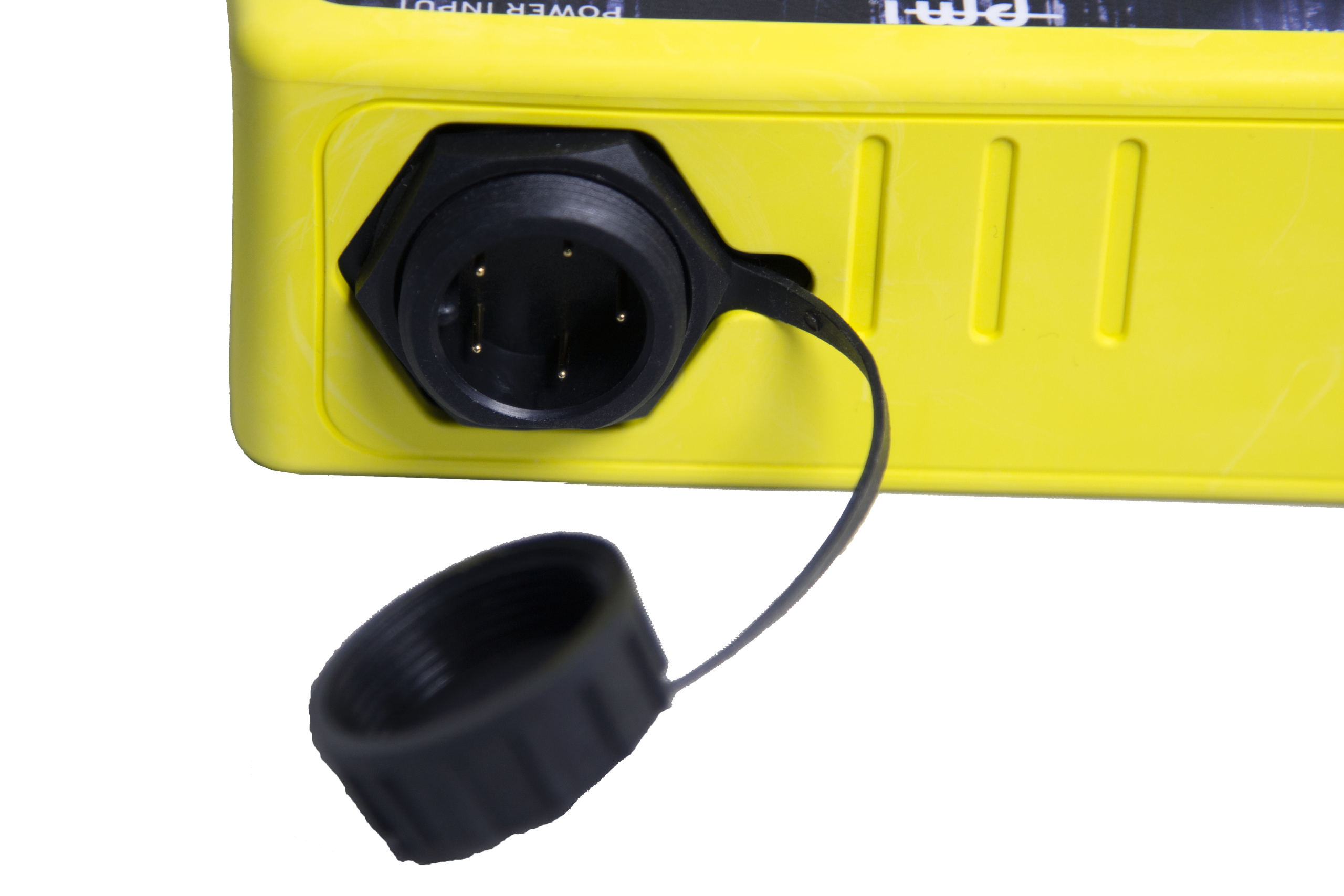

Power Supply Requirements

Voltage: 60-600VAC Channel 1 to Common (47-63Hz)
Power Consumption: 5 Watts max, 15 VA max at 600V

Environmental

Operating Temp: -20°F to +135°F
Humidity : Less than or equal to 85%
Shock: 60 Hz to 2 kHz, acceleration 25G
Vibration: 10Hz to 60Hz, amplitude 1.8mm
Max Altitude: 2.0km (6560 ft), derated above 2.0km

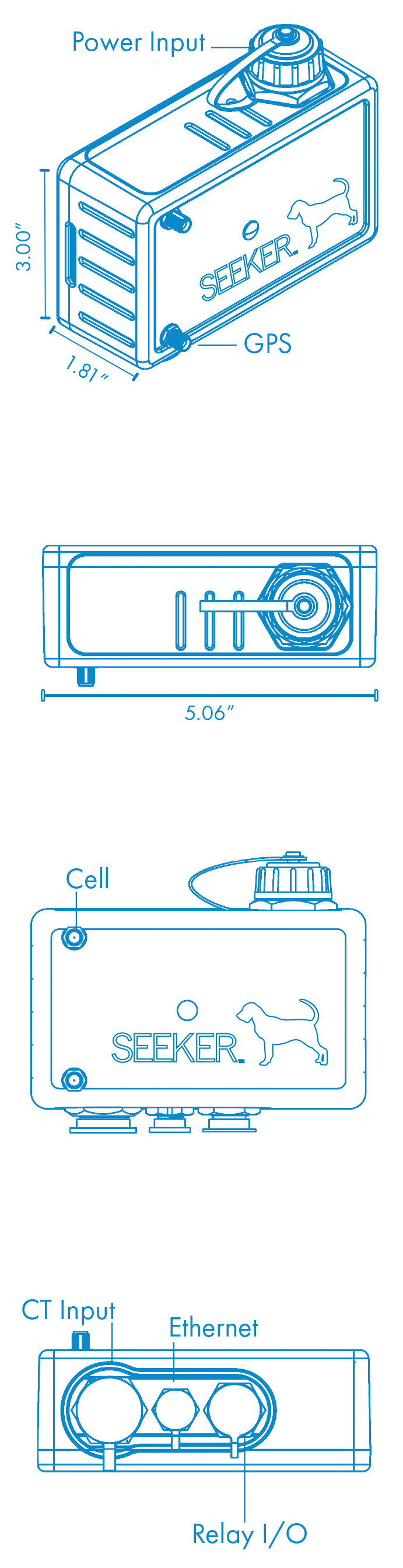

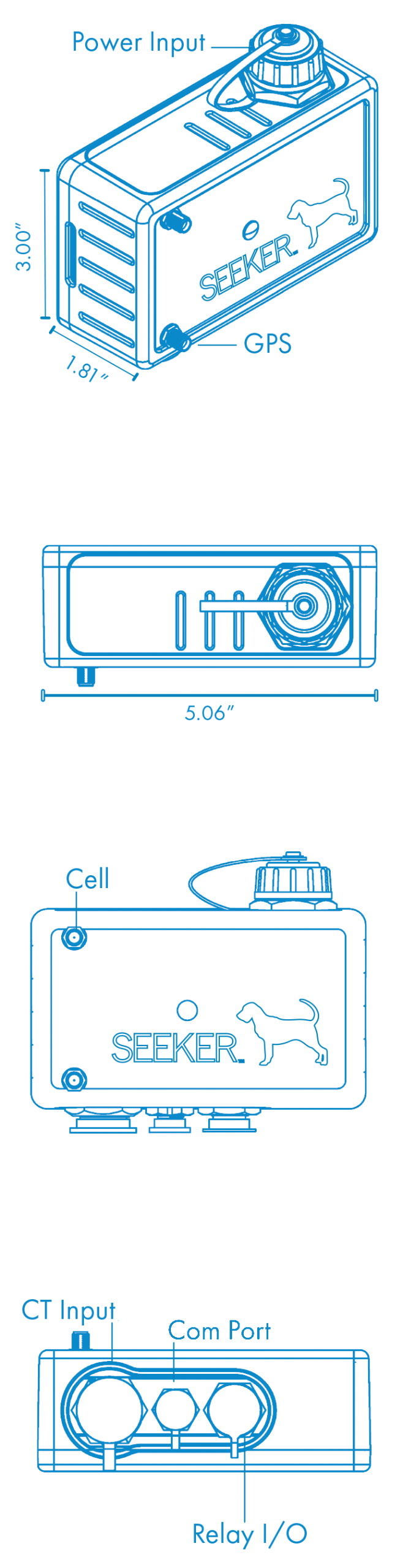

Physical Dimensions

Size: 5.06” L x 3.00” W x 1.81” H
Weight: less than 1 lb
Case: NEMA 4X

Safety

Design to IEC 61010-1, 600 V CAT III
