The Boomerang family of single-phase wireless voltage, current and power monitors extends your SCADA system to anywhere needed: a residential meter base, a voltage regulator on a pole, the end of a distribution line, or even a 120V receptacle. Each Boomerang includes an integrated cell modem with internal antenna for unobtrusive real-time monitoring anywhere.
Fine-tuned for use with low-cost telemetry data plans, the Boomerang full-featured DNP3 interface is optimized for demand management and conservation voltage regulation systems, including multiple configurable thresholds, unsolicited report by exception and polled modes, and analog and binary points.
The Boomerang can also interface with Canvass, PMI’s web-based database and data analysis package. With Canvass, all historical data is available in a web browser, accessible through powerful graphs and reports. Use Canvass to analyze voltage trends and regulator responses over geographic regions. Canvass can also be configured to send email and text messages based on Boomerang voltage, current and power events, for immediate action outside your SCADA system.
When used with the Canvass cloud system, the Boomerang collects data on a one second basis. Every few minutes, one-second RMS values are sent to the PMI data center. With this system, all data collection is performed continuously; NO data is stored in the Boomerang, and NO recording download operation is required by the user.

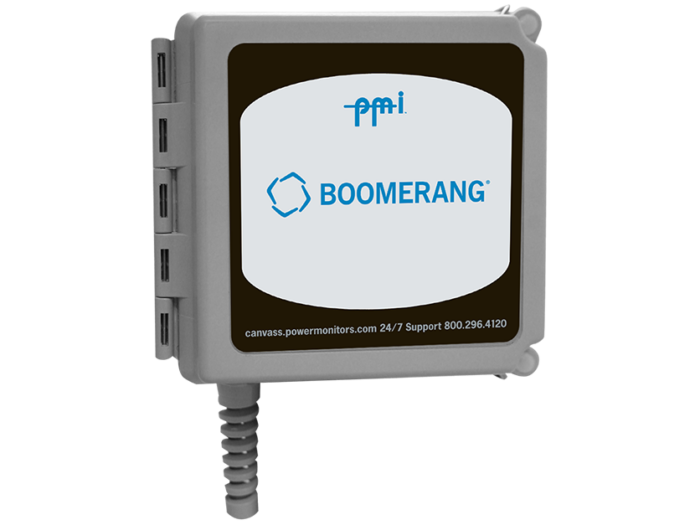

|BOOM01PV||Boomerang, CDMA, single-phase, Voltage, Pole Mount/Weather-proof Housing|
